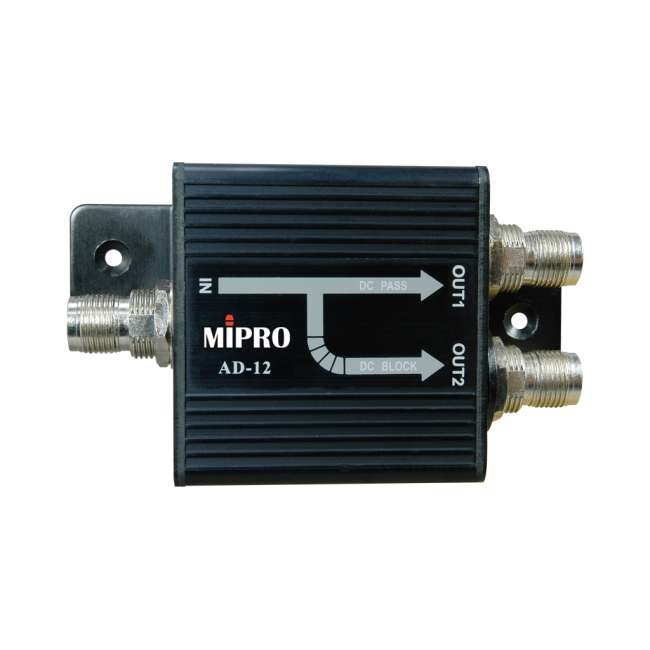

- The AD-12 was introduced in 2005 and can either divide a RF signal into 2 signal outputs or combine 2 signals into 1 signal output. Simultaneously, it transmits bias voltage to external boosters.
- It is a required device for antenna system installation.
- The AD-12 adapts an isolated grounding design to avoid power noise from multi-receiver operation.
| Frequency Range | UHF 470 ~ 1000 MHz | ||
| Gain | Attenuation 3.5 dB (typ.) | ||
| Max. RF Input Power | 30 dBm (1 W) | ||
| Isolation | 20 dB (typ.) | ||
| Max. Volt / Current | 50 V DC / 1.5 A | ||
| Input / Output Connectors | TNC female (1-input, 2-output) | ||
| System Impedance | 50 Ω | ||
| Dimensions (W × H × D) | 90.3 × 25 × 55.4 mm / 3.5 × 1 × 2.2 " | ||
| Net Weight | Approx. 105 g / 3.7 oz | ||
| Note | Refer to actual product in the event of product description discrepancy. |
