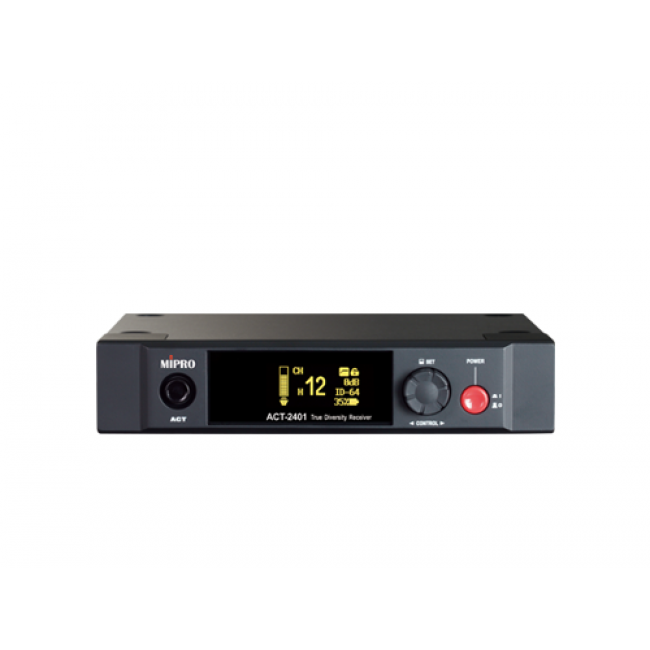

- ACT-2401 is single-channel in 1/2U metal chassis with a built-in high-efficiency antenna in the front panel.
- Designed with the same front panel with a graphic OLED screen that provides a larger field of view and the same operating method in MIPRO style for digital models.
- Stable digital modulation circuitry. 12 channels of interference-free operation are located in a single frequency band.
- Dual tuner true diversity receiving ensures long reception distance and eliminates signal drop-out.
- The precisely designed PCB is secured in a sturdy case for ultra-low malfunction.
| Model | ACT-2401 |
| Name | 2.4 GHz 1/2U Single-Channel Digital Receiver |
| Channel | Single |
| Chassis | EIA Standard 1/2U metal black case |
| Antenna | Built-in front panel |
| Display | Graphic OLED |
| Frequency Range | ISM 2.4 GHz band (2,400~2,483.5 MHz) |
| Preset Frequency | 12 |
| Receiving Mode | Dual-tuner true diversity receiving |
| Channel Set-up | ACT Sync |
| Sample Rate | 24-bit / 44.1 kHz |
| Frequency Response | 20 Hz ~ 20 kHz |
| Latency | < 4.0 ms |
| Dynamic Range | 117 dBA |
| Output Connectors | Balanced XLR & Unbalanced Ø 6.3 mm, -10 ~ +20 dB adjustable range. |
| Power Supply | External 100~240V AC switching power supply |
| Dimensions | 210 × 44 × 180 mm (W × H × D) |
| Weight | Approx. 0.75 kg |
| Note | Refer to the actual product in the event of product discrepancy. |
