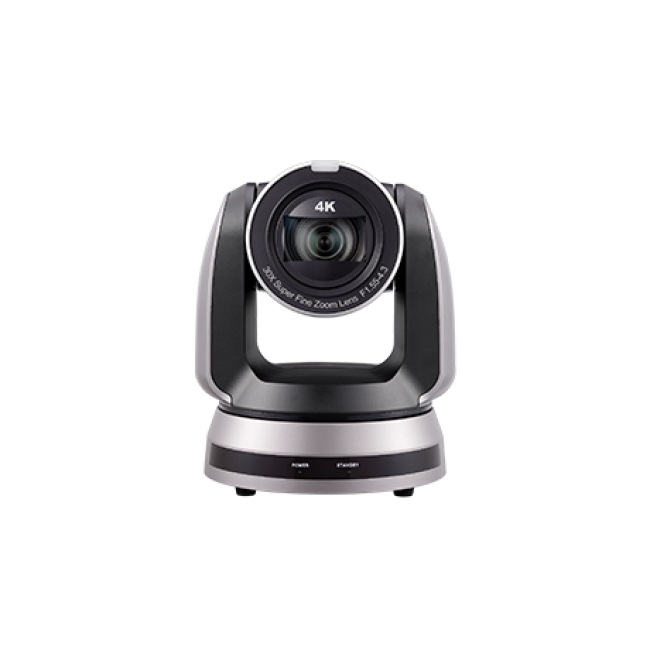

Lumens VC-A71P 4K 60fps IP PTZ Camera

  • Advanced UltraHD pan tilt zoom camera with 12G-SDI, IP, and HDMI outputs.
  • Brand:
  • Product Code:VCA71P
Contact for Price
  • 4K UHD 60fps and 1080P 60fps output
  • 30x optical zoom, 63° maximum horizontal field of view
  • 12G-SDI, HDMI, Ethernet, and USB 3.0 video output
  • Triple stream HEVC/H.264 IP video output
  • Supports RTSP / RTMP / RTMPS / MPEG-TS / SRT streaming protocols
  • Maximum horizontal/vertical speed of rotation: 300° /sec
  • Supports Power Over Ethernet (PoE++)
  • Smart AF: AI-enabled autofocus system
  • FreeD protocol for live VR/AR production


Broadcast Quality UltraHD Video

Paired with a low distortion professional zoom lens, the camera's large (1/1.8") CMOS sensor produces great 4K and HD results. Operating in lighting conditions down to 0.05 lux, the smooth video output makes it an ideal camera for producing sports, theatre, and live events. Its excellent color reproduction and 12G-SDI output mean it's a great choice for productions where image quality is of the highest importance.

AV and Broadcast Integration

The VC-A71P integrates with a variety of professional AV, IT, and broadcast workflows. The camera is ready for SDI and HDMI video workflows, IP networks, direct video streaming, and video conferencing via USB 3.0. Each interface will output video simultaneously, creating a flexible installation, monitoring, switching, and distribution options.

Live VR/AR Video Production

VC-A71P supports the popular FreeD protocol which outputs the camera’s positional data over IP in real-time. This enables users to work with state-of-the-art Virtual Reality and Augmented Reality sets without the need for additional sensors.

Control and Power

Lumens’ PTZ cameras offer users a high degree of versatility. The VC-A71P can be powered by a dedicated 12v DC adapter, or via POE++, giving network managers the option to install devices in any position. Multiple control protocols (Visca, Pelco, Onvif and UVC) and interfaces (RS-232, RS-422, Ethernet and USB 3.0) enable cameras to join new or existing networks.

Face Recognition Autofocus System

Equipped with Lumens' Smart AF algorithm, VC-A71P can intelligently identify human faces and automatically detect the eyes and mouth. This enables the camera to keep the subject in sharp focus all the time.

Semi-Autonomous Production

Each camera supports up-to 256 presets, allowing users to switch angles and zoom positions, and engage tracking movements at the touch of a button. The advanced Auto Focus, Auto Exposure and Auto White Balance algorithms automatically deliver consistent images while zooming and panning, or under changing lighting conditions. Together, these advanced functions allow a single operator to manage multiple cameras and to produce multi-camera productions without the need for a large crew.
