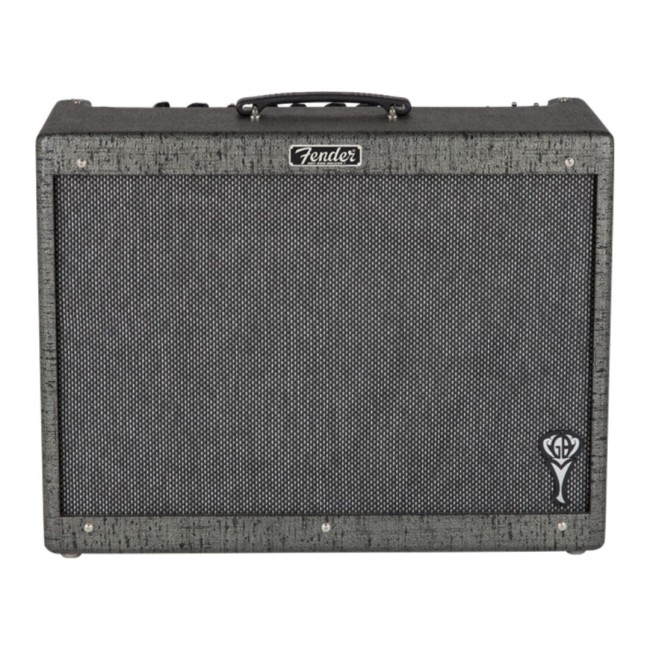

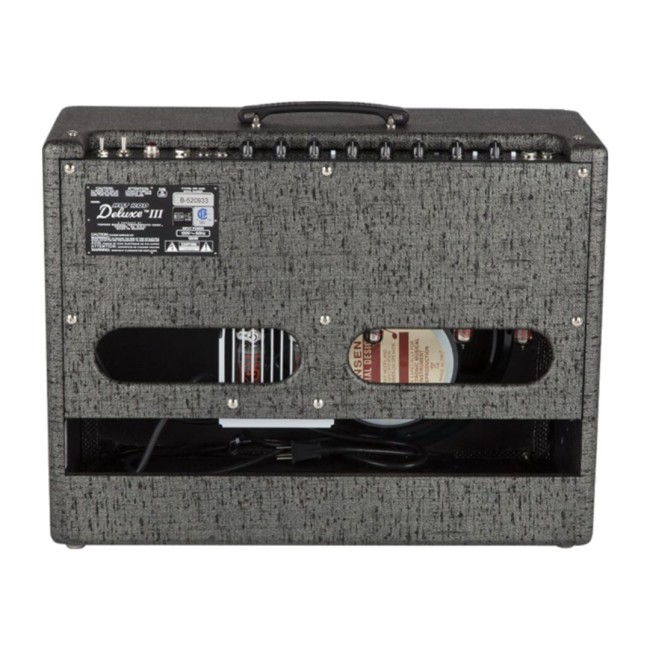

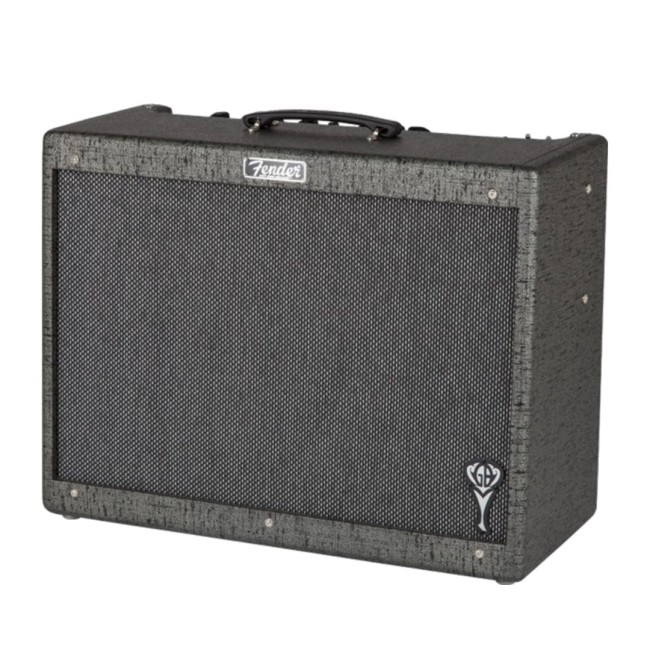

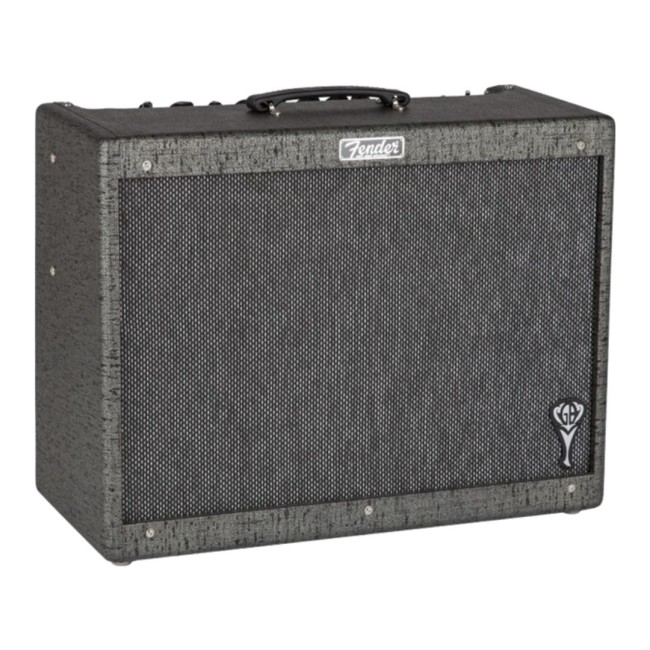

Fender 2230406000 GB Hot Rod Deluxe Amplifer
- Fender 2230406000 GB Hot Rod Deluxe Amplifer
- Brand:
- Product Code:2230406000
Guitarists of all kinds play through Fender Hot Rod Deluxe™ amplifiers. Rockers, pop stars, cowboys and more all agree that they deliver unmistakable Fender tone - perfect amps for crafting your own sound, and extremely responsive to your favorite stomp-box effects.
The GB Hot Rod Deluxe™ is a 40-watt 1x12" combo especially fine-tuned for world-famous jazz guitar virtuoso and pop artist George Benson. It has the full bottom end characteristic of 6L6 tubes, and a versatile all-tube preamp - including a 12AT7 up front for cleaner tone; especially with humbucking pickups. A 100-watt Jensen® C12K speaker handles the immediacy of Benson's singing soloing style with clarity and range, and the solid-pine cabinet increases tonal resonance while reducing weight. Standard features include clean and "drive/more-drive" channels, resounding Fender spring reverb, effects loop and more. Personalized exterior touches specified by Benson himself include gray-black vinyl covering, silver-strand grille cloth and "GB" logo badge. Road-worthy deluxe padded cover and two-button footswitch included. Separate matching 1x12" extension enclosure (part number 223-1400-000) adds output, fullness and stage coverage.
The GB Logo design is a trademark of Hoshino Gakki Co., Ltd., with which FMIC is not affiliated.
Features
- 40 watts
- All-tube preamp
- 12" Jensen® C12K speaker
- Three channels (clean, drive and more drive)
- Fender spring reverb
- Gray-black vinyl covering with silver-strand grille cloth and "GB" logo badge
Specsification

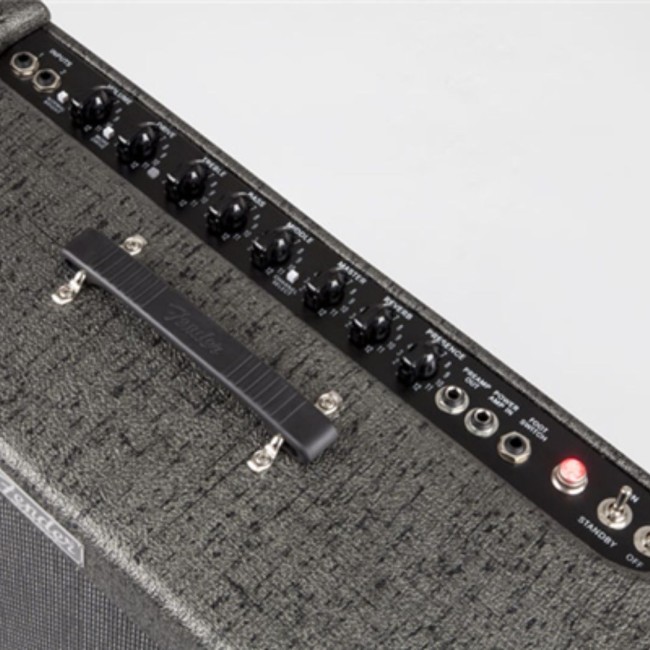

- Controls: Presence, Reverb, Master Volume, Middle, Bass, Treble, Drive Select Switch, Drive Volume, Bright Switch
- Control Panel: Presence, Reverb, Master Volume, Middle, Bass, Treble, Drive Select Switch, Drive Volume, Bright Switch
- Inputs: Two - (1/4", Input 2 operates at -6dB)
- Channels: Three - Selectable (Normal, Drive, and More Drive)
- Effects Loop: 1/4" - (Preamp Out, Power Amp In)
- Connection Type: 1/4"
- Voltage: 230V EUR
- Wattage: 40 Watts
- Control Knobs: Chicken-Head Style Pointer - Black
- Amplifier Covering: Gray-Black Vinyl
- Cabinet Material: Finger-Jointed Solid Pine
- Grille Cloth: Silver-Strand
- Handle: Molded Rubber "Dog Bone" Style
- Amplifier Jewel: Red Jewel
- Speaker Jack: Two 1/4" Parallel (Internal and External)
- Front Panel: Black
- Reverb Tank: 4EB3C1B (P/N 0050394049)
- Reverb Tank Type: 4EB3C1B (P/N 0050394049)
- Dimensions: 12.50 x 22.00 x 25.75 IN
- Shipping Weight: 52.00 LB
- Product Depth: 10.4375" (265 mm)
- Product Height: 18.75" (47.6 cm)
- Product Width: 23.5" (59.7 cm)
- Power Tubes: 2 x 6L6
- Shipping Length: 25.75 IN
- Shipping Height: 12.50 IN
- Shipping Width: 22.00 IN
- Speakers: One - 12" Jensen® C12K with Ceramic Magnet
- Total Impedance: 8 ohms
- Preamp Tubes: 1 x 12AT7, 2 x 12AX7
- Rectifier: Solid State
- Included Footswitch: 2-Button 3-Function (Channel Select, Drive/More Drive) - P/N 0994062000
