Designed to accommodate all your pedalboard needs, the Engine Room® LVL 12 is ready to deliver. Featuring twelve ground isolated power outlets, (10) are capable of delivering 9Vdc at 500mA while (2) additional outlets provide switchable voltage (9v/12v/18v) via 3-way toggle or slide switch. A courtesy IEC outlet on the back allows you to add an additional Engine Room® LVL5, LVL8, or even LVL12 for the biggest rigs.
Our in-house team of experts in Southern California designed the Engine Room® Power Supply. The chassis is crafted from lightweight, durable anodized aluminum, and its sleek, low-profile appearance is engineered to accommodate most pedalboards. Road-tested and ready for live or studio use, Fender's Engine Room® Power Supply is built to power your performance.
Features

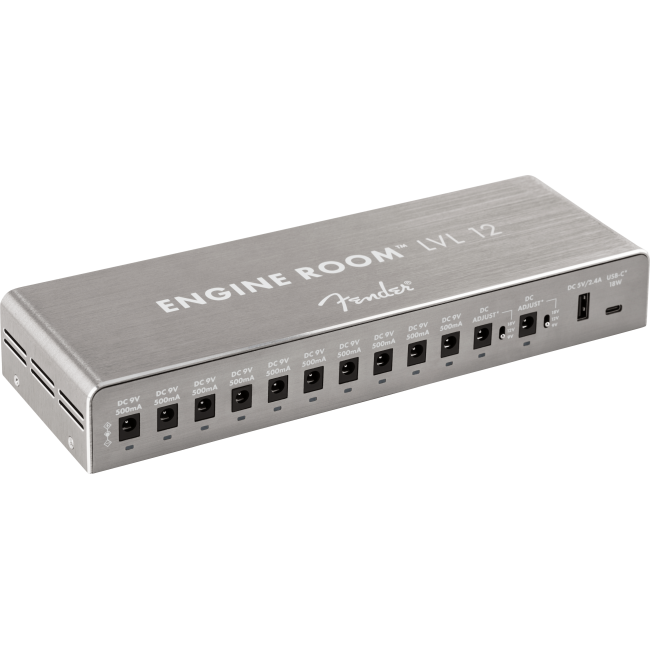

- 12 ground-isolated outputs: 10 outlets fixed at 9Vdc (500mA) and 2 outlets switchable between 9V, 12V, and 18V
- Global mains input voltage: 100-240Vac, 50/60Hz, suitable for worldwide use

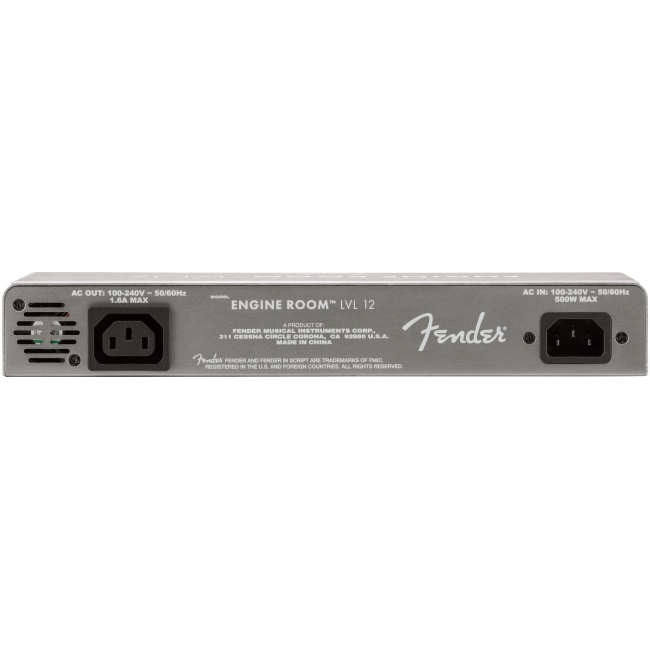

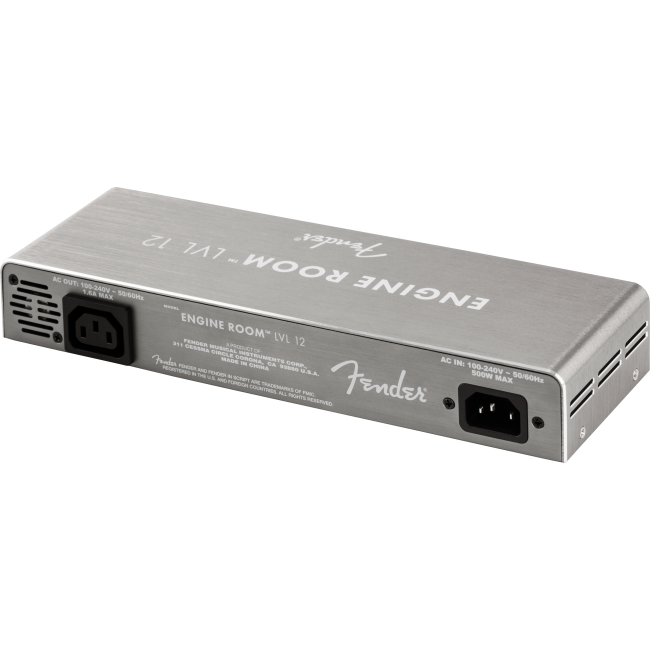

- Standard IEC mains voltage connector
- Dimensions: 11.1" (282mm) width × 1.65" (42mm) height × 3.66" (93mm) depth
- 5V USB-A and USB-C output for charging smart devices
- Cable Kit Includes:
- 6 × 2.1mm barrel connector (24" / 60cm length)
- 4 × 2.1mm barrel connector (18" / 45cm length)
- 2 × 2.1mm barrel connector (12" / 30cm length)
- 1 × 2.5mm to 2.1mm barrel
- 1 × 2.5mm to 2.1mm barrel (reverse polarity)
- 1 × 3.5mm TS to 2.1mm barrel
- 1 × 9V battery clip to 2.1mm barrel
- 1 × IEC daisy-chain cable (male to female)
Specs
-
Included Accessories:
- 6 x 2.1mm barrel connector, 24” (60cm) length
- 4 x 2.1mm barrel connector, 18” (45cm) length
- 2 x 2.1mm barrel connector, 12” (30cm) length
- 1 x 2.5mm to 2.1mm barrel
- 1 x 2.5mm to 2.1mm barrel, reverse polarity
- 1 x 3.5mm TS to 2.1mm barrel
- 1 x 9V battery clip to 2.1mm barrel
- 1 x IEC daisy-chain cable (male to female)
-
Output:
- 12 ground-isolated outputs:
- 10 outputs fixed at 9V/500mA
- 2 switchable outputs (9V/500mA, 12V/375mA, 18V/250mA)
- 12 ground-isolated outputs:
-
Color: Gray
-
Material: Anodized Aluminum
-
Product Name: Engine Room™ LVL12 Power Supply, 120V
-
Series: Engine Room®
-
Product Depth: 3.66” (93mm)
-
Product Height: 1.65” (42mm)
-
Product Width: 12.84" (32.8cm)
-
Case Pack Qty: 6
-
Power Cable: 6.6 ft (2m) IEC
