Product Code:0118030771

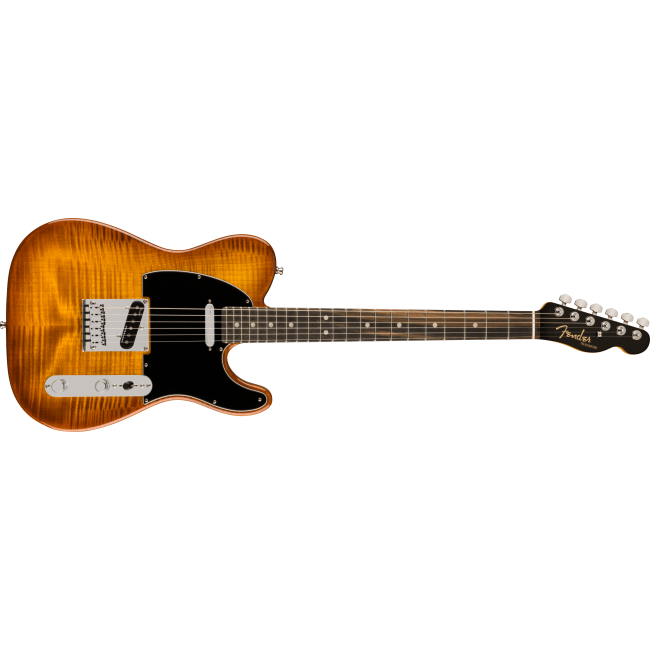

American Ultra is our most advanced series of guitars and basses for discerning players who demand the ultimate in precision, performance and tone. The American Ultra Telecaster features a unique "Modern D" neck profile with Ultra rolled fingerboard edges for hours of playing comfort, and the tapered neck heel allows easy access to the highest register. A speedy 10"-14" compound-radius fingerboard with 22 medium-jumbo frets means effortless and accurate soloing, while the Ultra Noiseless™ Vintage pickups and advanced wiring options provide endless tonal possibilities - without hum. The sculpted rear body contours are as beautiful as they are functional. This versatile, state-of-the-art instrument will inspire you to push your playing to new heights.
Other features include sealed locking tuning machines, chrome hardware and bone nut. Includes premium molded hardshell case.
Features
| Neck Material | Maple |
|---|---|
| Neck Finish | Ultra Satin Urethane with Gloss Headstock Face |
| Neck Shape | Modern "D" |
| Neck Construction | 4-Bolt Standard |
| Fingerboard Radius | 10" to 14" Compound Radius (254 mm to 355.6 mm) |
| Fingerboard Material | Streaked Ebony |
| Position Inlays | White Pearloid Dot |
| Side Dots | White |
| Number of Frets | 22 |
| Truss Rod | Bi-Flex™ |
| String Nut | Bone |
| Nut Width | 1.685" (42.8 mm) |
| Nut Material | Bone |
| Body | Alder with Flame Maple Top |
| Body Finish | Gloss Urethane |
| Body Shape | Telecaster® |
| Body Top | Flame Maple |
| Body Back | Flame Maple |
| Body Style | Solid Body |
| Body Material | Alder with Flame Maple Top |
| Bridge | 6-Saddle American Tele® with Chromed Brass Saddles |
| Pickguard | 3-Ply Black |
| Control Knobs | Knurled Flat-Top |
| Switch Tip | Black |
| Hardware Finish | Nickel/Chrome |
| Tuning Machines | Deluxe Cast/Sealed Locking (all short posts) |
| Strings | Fender® USA 250L Nickel Plated Steel (.009-.042 Gauges), PN 0730250403 |
| Neck Plate | 4-Bolt Asymmetrical |
| Strap Buttons | Locking |
| Bridge Pickup | Ultra Noiseless™ Vintage Tele® |
| Neck Pickup | Ultra Noiseless™ Vintage Tele® |
| Pickup Configuration | SS |
| Controls | Master Volume (S-1™ Switch), Master Tone |
| Switching | 3-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup |
| Special Electronics | S-1™ Switch Activates Series Wiring Option in Middle Pickup Position |
| Fret Size | Medium Jumbo |
| Scale Length | 25.5" (64.77 cm) |
| Dimensions | 5.90 x 18.90 x 44.50 IN |
| Shipping Weight | 20.15 LB |
| Shipping Length | 44.50 IN |
| Shipping Height | 5.90 IN |
| Shipping Width | 18.90 IN |
