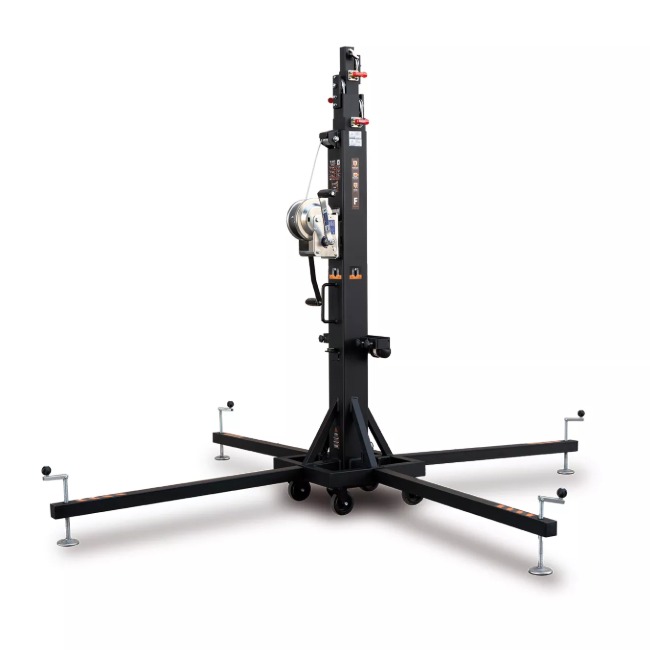

Fantek TK6422LS LoadSense Lifting Tower 225kg
- The Fantek TK6422LS is a professional telescopic lifting tower featuring LoadSense monitoring, a maximum height of 6.55m, and a lifting capacity of 225kg, ideal for lighting, truss, and event production applications
- Brand:
- Product Code:FT8045
- LoadSense load monitoring system
- Maximum lifting height of 6.55m
- Supports loads up to 225kg
- Heavy-duty steel construction
- Five-section telescopic mast
- Manual winch operation
- Self-locking safety pin system
- Stabilizer leg design
- Compact folding dimensions
- CE, DGUV, BGV C1, and BGG 912 certified
FEATURES
LoadSense Monitoring System
Integrated load monitoring technology helps ensure safe lifting operations and compliance with professional safety requirements.
225kg Load Capacity
Designed to lift professional lighting, truss, and audiovisual equipment safely and efficiently.
Maximum Height of 6.55m
Provides excellent lifting range for stage productions, installations, and event applications.
Five-Section Telescopic Mast
Durable telescopic steel profiles provide smooth extension and reliable performance.

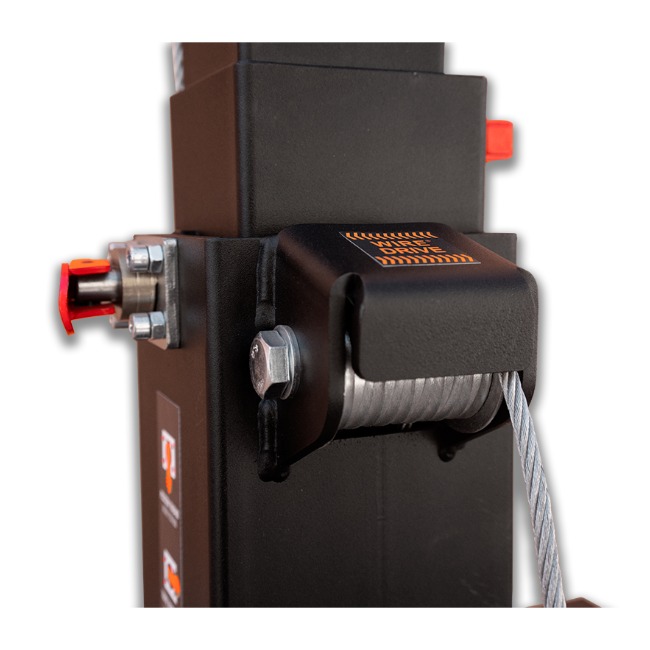

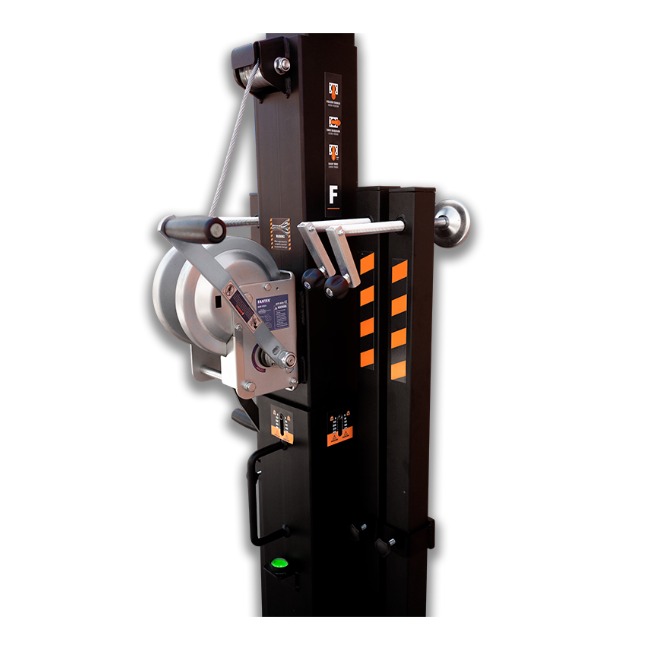

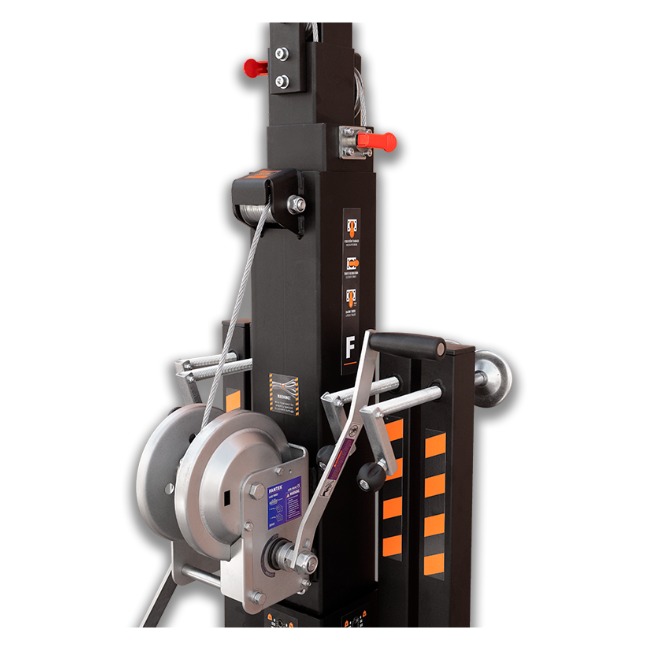

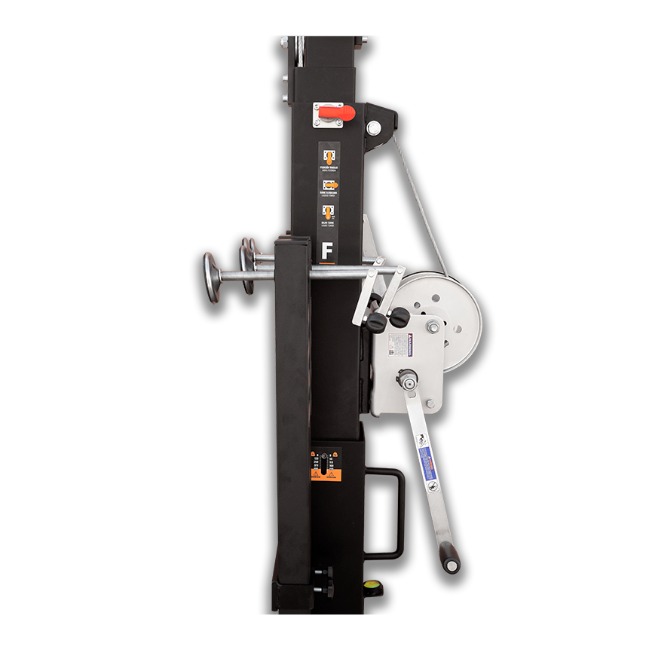

Manual Winch Operation
Equipped with a high-capacity manual winch and double crank handle for controlled lifting.
Self-Locking Safety Pins
Automatic steel safety pins secure each section at its operating height.
Stabilizer Leg System
Wide base design improves stability during operation.
Heavy-Duty Steel Construction
Built for professional use in demanding environments.

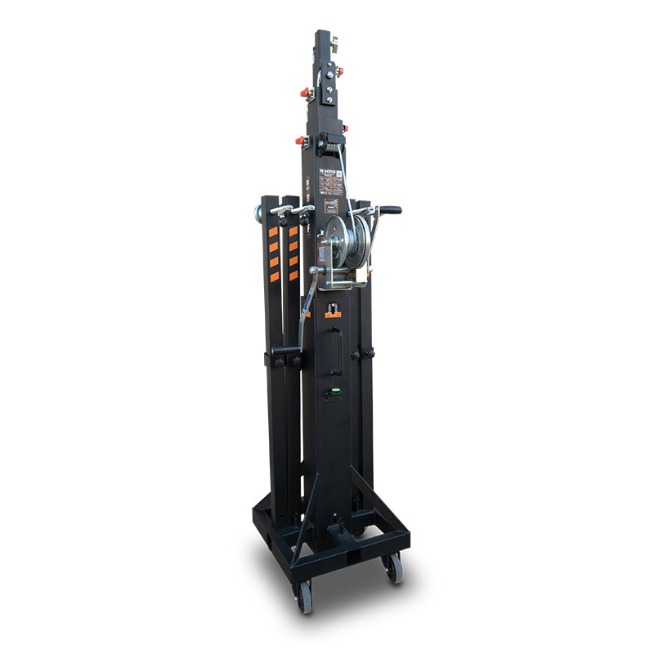

Compact Transport Design
Folds down to just 1.95m for easier transport and storage.
Professional Certifications
Certified to CE, DGUV, BGV C1, and BGG 912 standards for professional applications
| Specification | Details |
|---|---|
| Model | TK6422LS |
| Brand | Fantek |
| Type | Top Load Telescopic Lifting Tower |
| Material | Steel |
| Maximum Height | 6.55 m |
| Minimum Height | 1.95 m |
| Folded Height | 1.95 m |
| Number of Sections | 5 |
| Maximum Load Capacity | 225 kg |
| Minimum Load Capacity | 25 kg |
| Winch Capacity | 900 kg |
| Cable Diameter | 6 mm |
| Extended Base Dimensions | 2.65 x 2.65 m |
| Folded Base Dimensions | 0.46 x 0.46 m |
| Unfolded Base Diameter | 2.65 m |
| Noise Emission | 75 dB |
| Security Systems | Self-Locking Safety Pins |
| Weight | 103 kg |
| Compatible Accessories | ATCMOS, ATCMOB, ATCLTS, ATC6FS, ATC29S, ATCBAS |
| Certifications | CE, DGUV, BGV C1, BGG 912 |
