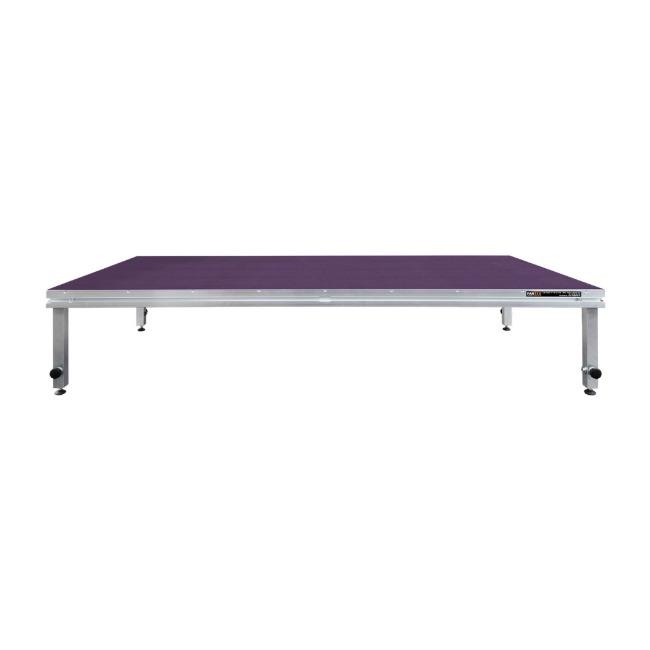

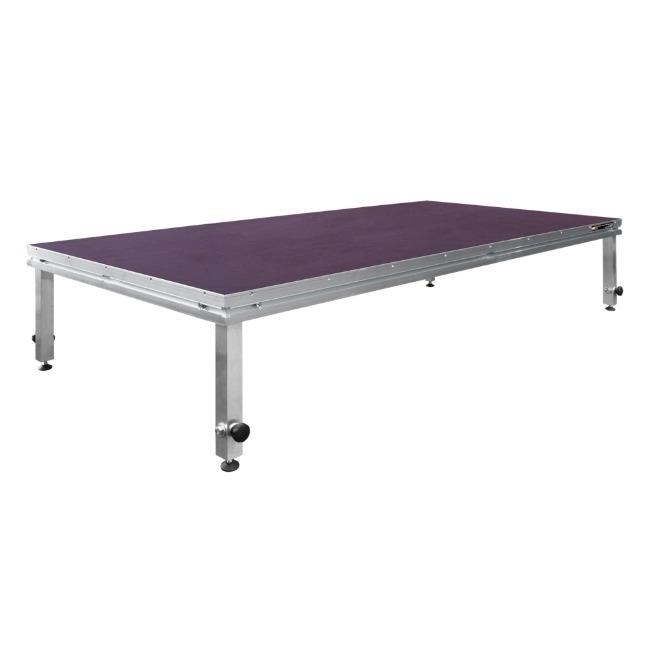

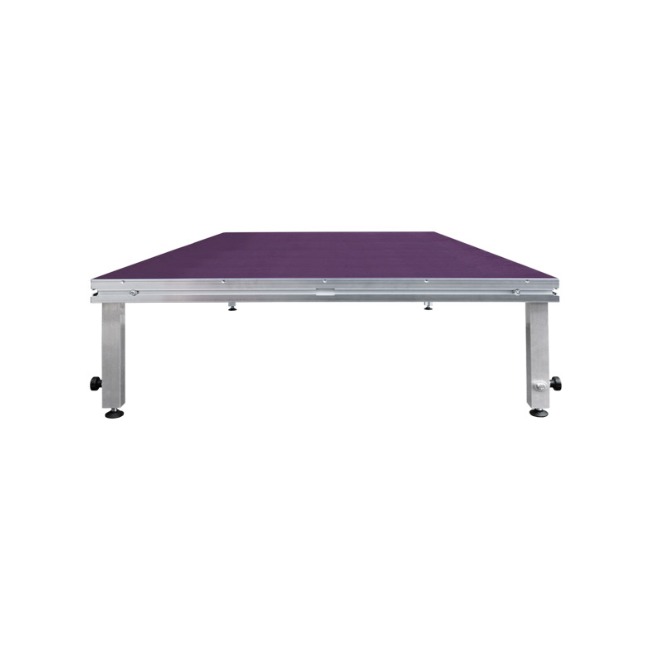

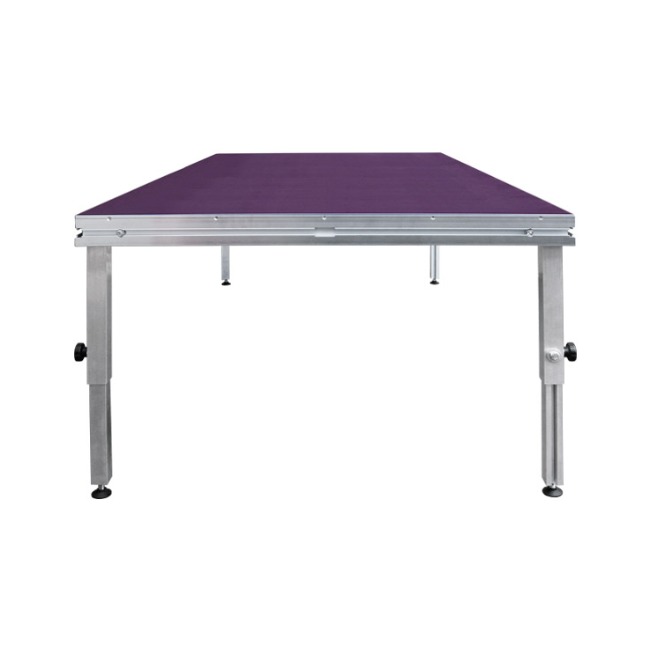

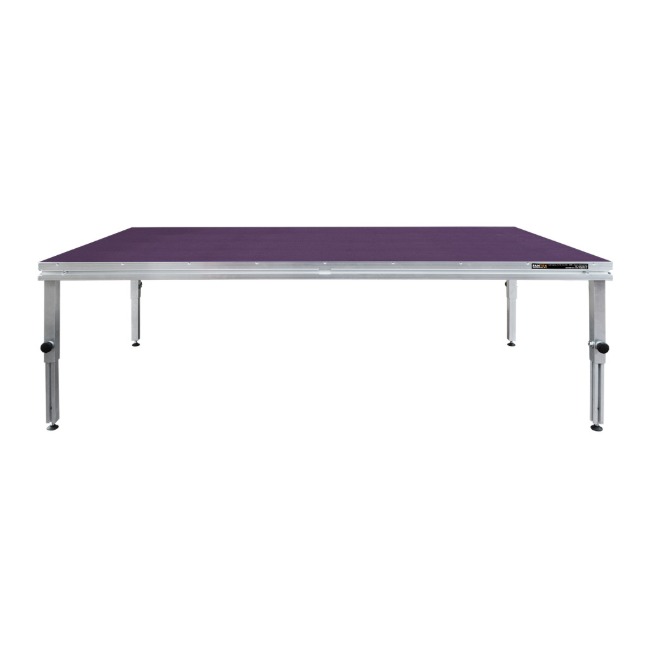

Fantek TA15A Portable Stage Deck 500kg/m²
- The Fantek TA15A is a professional portable stage deck featuring a 15mm birch plywood surface, weather-resistant construction, and a load capacity of up to 500kg/m². Ideal for events, performances, and installations
- Brand:
- Product Code:TA15A
- Professional modular stage deck
- Maximum load capacity of 500kg/m²
- 15mm birch plywood platform
- Weather-resistant phenolic bonded surface
- Durable aluminium 6082 T6 frame
- Available in multiple deck sizes
- PEFC-certified environmentally responsible materials
- Class 3 durability and gluing quality
- Includes 2 TA C 001 stage connectors
- Suitable for indoor and outdoor events
FEATURES
500kg/m² Load Capacity
Designed to support demanding performance and event applications with excellent structural integrity.
15mm Birch Plywood Surface
High-quality birch plywood deck provides strength, durability, and professional appearance.
Weather-Resistant Construction
Phenolic bonded plywood panel offers reliable performance in indoor and outdoor environments.
Aluminium 6082 T6 Frame
Strong yet lightweight aluminium structure ensures durability and ease of transport.
Modular Stage System
Available in multiple platform sizes for flexible stage configuration and expansion.
Class 3 Durability
Features sealed lining and protected edges for enhanced resistance to wear and environmental conditions.
Professional Safety Standards
Manufactured in accordance with recognized stage and plywood construction standards.
PEFC-Certified Materials
Produced using responsibly sourced wood materials that meet environmental certification requirements.
Stage Connectors Included
Each deck includes 2 TA C 001 joint accessories for secure platform linking.
Ideal for Professional Events
Perfect for concerts, theatres, conferences, exhibitions, schools, hotels, and corporate events.
| Specification | Details |
|---|---|
| Model | TA15A |
| Brand | Fantek |
| Type | Modular Stage Deck |
| Maximum Load | 500 kg/m² |
| Panel Material | 15mm Birch Plywood |
| Frame Material | Aluminium 6082 T6 |
| Durability | Class 3 (Sealed Lining & Edges) |
| Gluing Quality | Class 3 EN 314-2 |
| Board Regulations | EN 314-2/Class 3, EN 636 |
| Module Regulations | DIN 4112-4113 |
| Reaction to Fire | EN 13986:2004 + A1:2015 |
| Abrasion Standard | DIN 53799 (1/1986) / EC 438-2:1991 |
| Water Vapor Permeability | Wet Cup 90, Dry Cup 220 (Uncoated) |
| Environment Certification | PEFC ST 2002:2013 & PEFC ST 2001:2008 |
| Available Sizes | 2 x 1m, 2 x 0.5m, 1 x 1m |
| Platform Height | 70.4 mm |
| Weight | 29 kg |
| Included Accessories | 2 x TA C 001 Joint Connectors |
| Legs Included | No (Sold Separately) |
| Applications | Events, Concerts, Theatres, Exhibitions, Conferences, Schools, Corporate Events |
