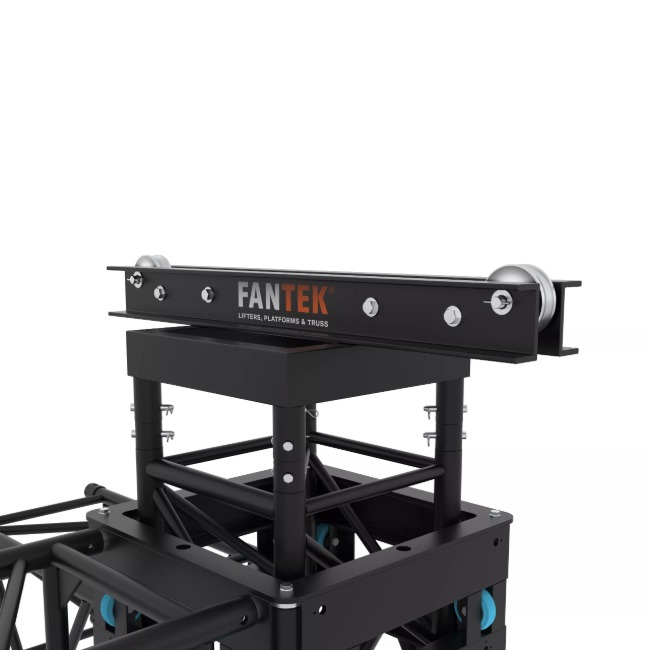

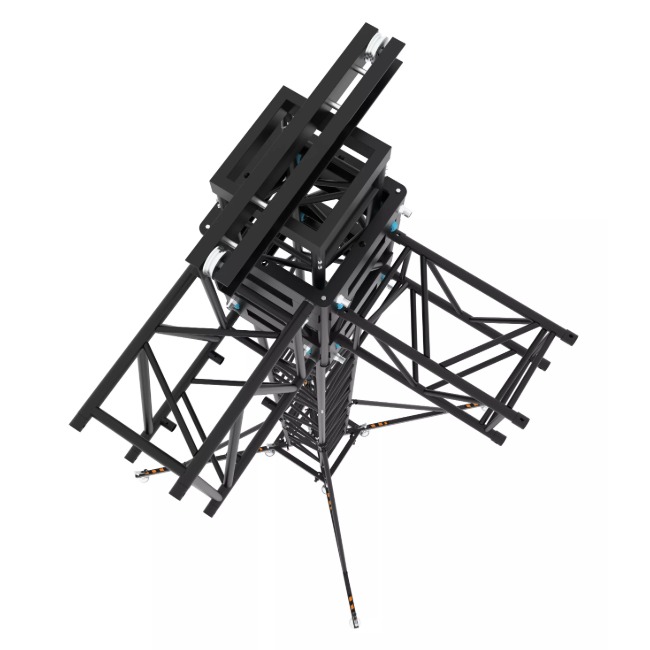

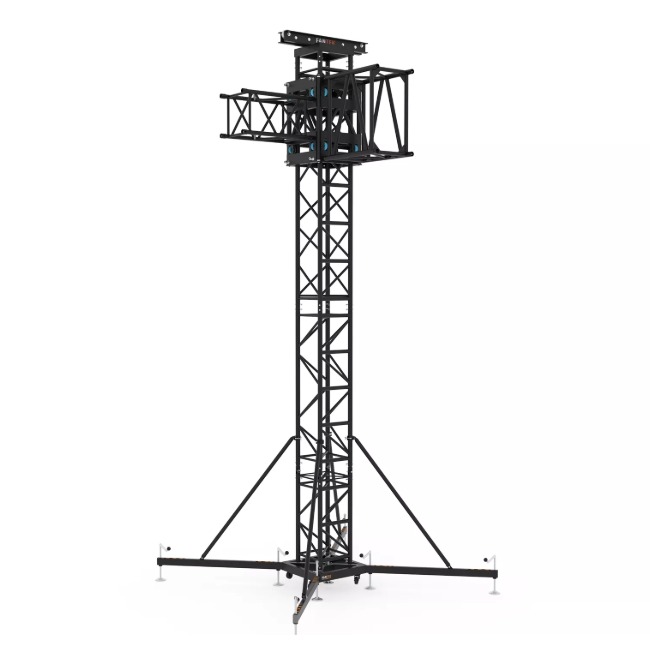

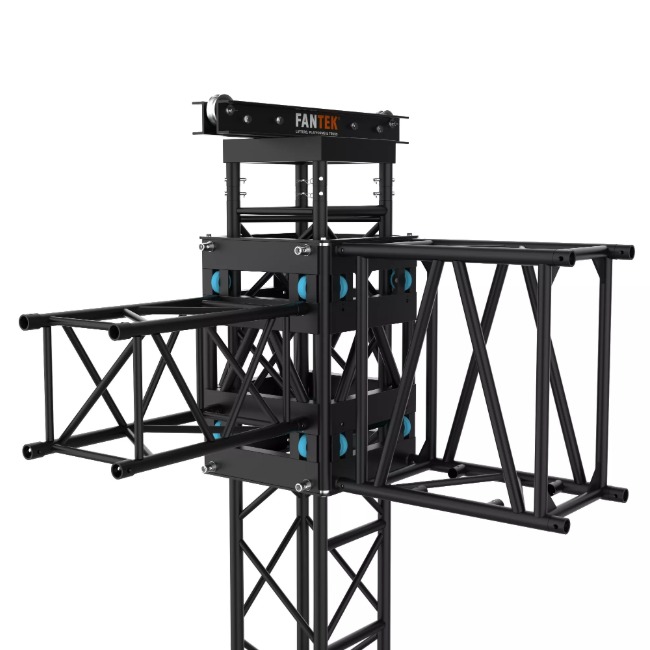

Fantek GS152 High-Load Ground Support Tower
- The Fantek GS152 is a high-load ground support tower featuring a GS52Q truss mast, 12m maximum height, and a load capacity of up to 5000kg, making it ideal for large-scale staging and rigging applications
- Brand:
- Product Code:GS152
- High-load ground support tower
- Maximum height of 12m
- Supports loads up to 5000kg
- GS52Q truss mast design
- Ladder-style side access system
- Welded structural carriage construction
- Compatible with high-load truss systems
- Electric chain hoist lifting system
- Extended base of 3m x 3m
- Ideal for concerts, festivals, and large productions
FEATURES
5000kg Maximum Load Capacity
Designed for demanding rigging and staging applications requiring exceptional load-bearing performance.
12-Metre Operating Height
Provides elevated support for large-scale event production and structural installations.
GS52Q Truss Mast Construction
Built around a heavy-duty GS52Q mast structure for maximum strength and reliability.
Safe Ladder-Style Access Design
One side of the mast incorporates ladder-style bracing to facilitate safe access to elevated truss sections.
Heavy-Duty Ground Support System
Suitable for festivals, concerts, outdoor events, exhibitions, and professional productions.

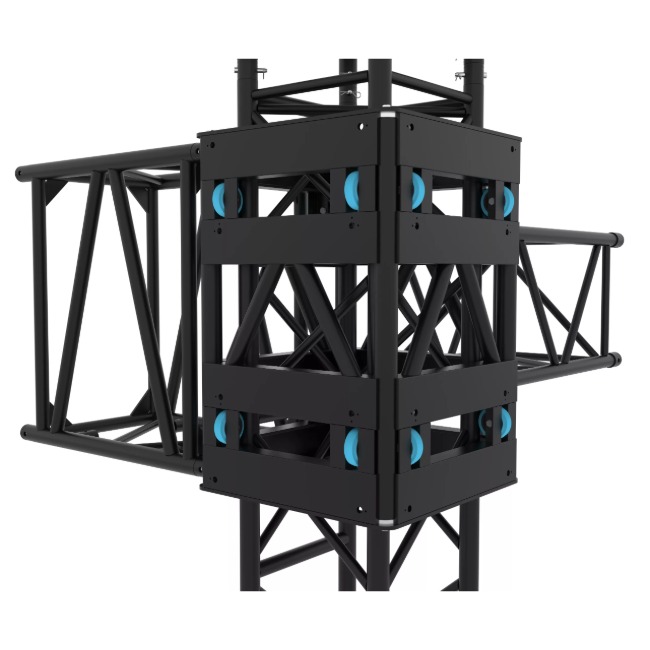

Precision Welded Structural Carriage
Offers greater strength, stability, and accuracy compared to conventional support systems.
Compatible with High-Load Truss Systems
Designed to work seamlessly with professional heavy-duty truss structures.
Electric Chain Hoist Operation
Utilizes an electric chain hoist lifting system for efficient operation. Hoist sold separately.

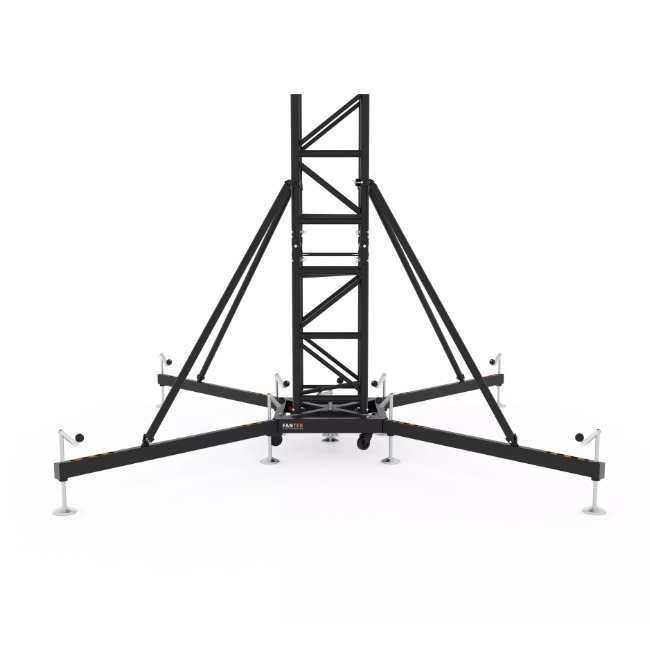

3m x 3m Extended Base
Provides excellent ground stability and support during operation.
Professional Event Solution
Ideal for staging companies, rental providers, concert venues, and large-scale event installations
| Specification | Details |
|---|---|
| Model | GS152 |
| Brand | Fantek |
| Type | High-Load Ground Support Tower |
| Mast Type | GS52Q Truss Mast |
| Maximum Height | 12 m |
| Maximum Load Capacity | 5000 kg |
| Lifting System | Electric Chain Hoist (Sold Separately) |
| Base Dimensions (Extended) | 3 x 3 m |
| Access System | Ladder-Style Side Bracing |
| Construction | Welded Structural Carriage |
| Compatibility | High-Load Truss Systems |
| Applications | Concerts, Festivals, Event Production, Stage Rigging, Outdoor Events, Exhibitions |
