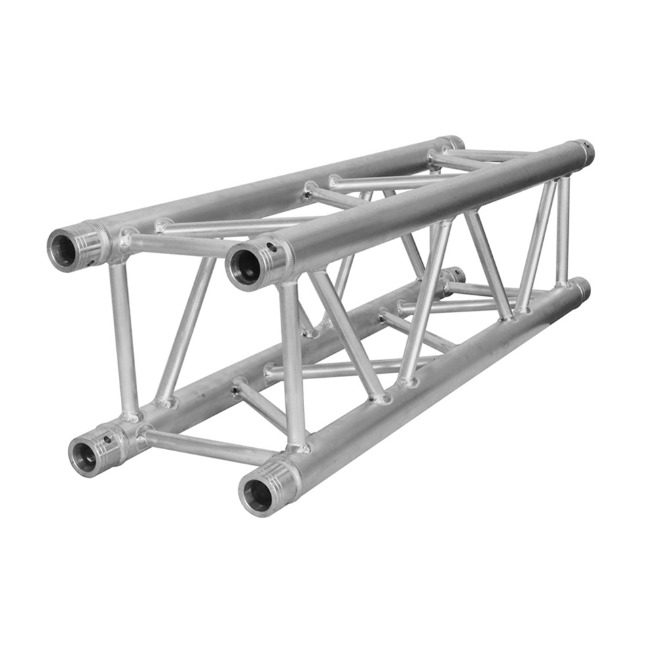

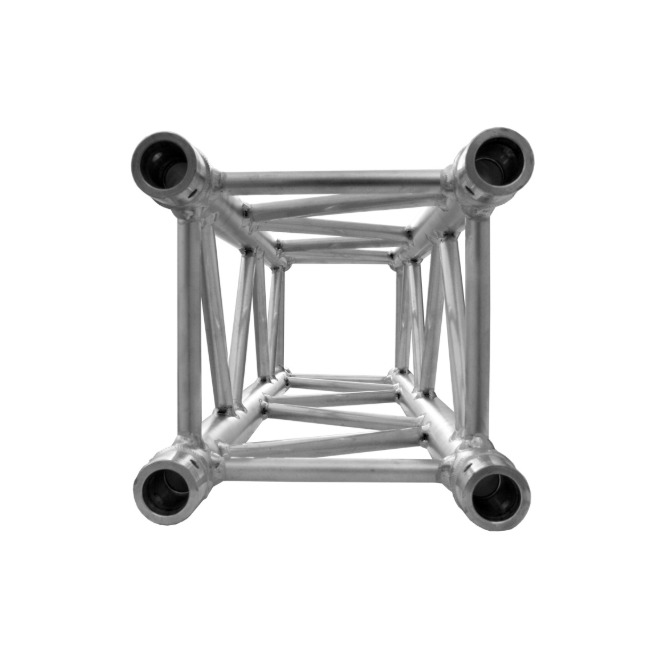

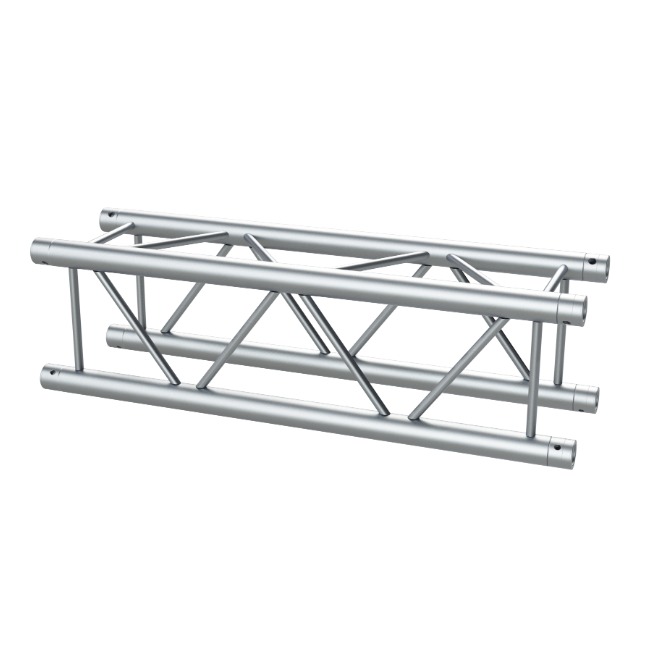

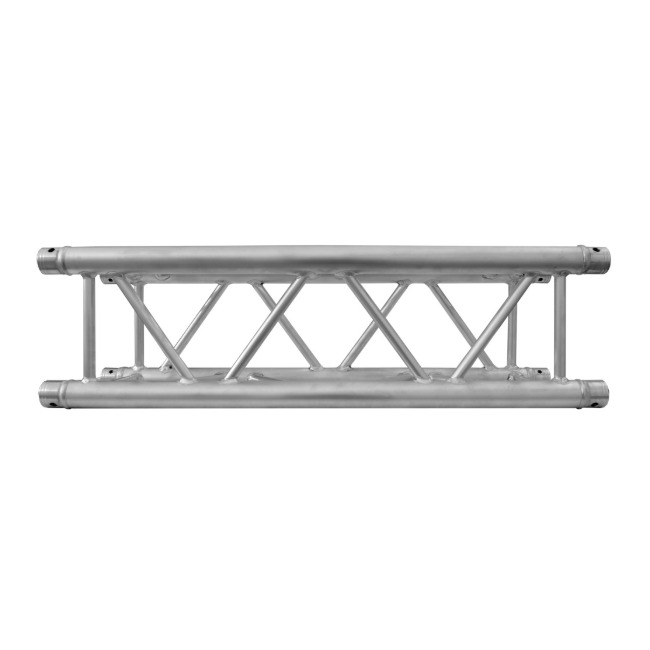

Fantek FK30Q 300mm Aluminium Square Truss
- The Fantek FK30Q is a professional 300 x 300mm aluminium square truss featuring 50 x 2mm main tubes, 16 x 2mm braces, and F SERIES compatibility. Ideal for staging, lighting, exhibitions, and event installations
- Brand:
- Product Code:FK30Q
- 300 x 300mm aluminium square truss
- Heavy-duty 50 x 2mm main tubes
- Reinforced 16 x 2mm diagonal braces
- F SERIES compatible design
- CBC50F coupling system
- Available in 0.5m, 1m, 2m, and 3m lengths
- Silver or black finish options
- Lightweight yet durable construction
- Includes complete connection hardware
- Ideal for staging, lighting, and event production
FEATURES
300 x 300mm Square Truss Structure
Designed for professional staging, exhibition, lighting, and rigging applications requiring strength and reliability.
Heavy-Duty Aluminium Construction
Built with 50 x 2mm main tubes to provide excellent load-bearing performance and durability.
Reinforced Bracing Design
16 x 2mm diagonal braces enhance structural stability and strength.
F SERIES Compatibility
Fully compatible with other F SERIES truss components for flexible system expansion.
CBC50F Connection System
Provides secure and efficient assembly for professional installations.
Multiple Length Availability
Available in 0.5m, 1m, 2m, and 3m sections to suit a wide range of projects.
Professional Finish Options
Offered in silver or black to complement different venue and production requirements.
Complete Hardware Included
Supplied with 4 double cones, 4 pins, 4 threaded pins, and 4 R safety clips.
Lightweight and Easy to Transport
Premium aluminium construction offers an excellent balance of strength and portability.
Perfect for Professional Applications
Suitable for concert stages, theatres, exhibitions, trade shows, event production, and permanent AV installations.
| Specification | Details |
|---|---|
| Model | FK30Q |
| Brand | Fantek |
| Series | F SERIES |
| Type | Aluminium Square Truss |

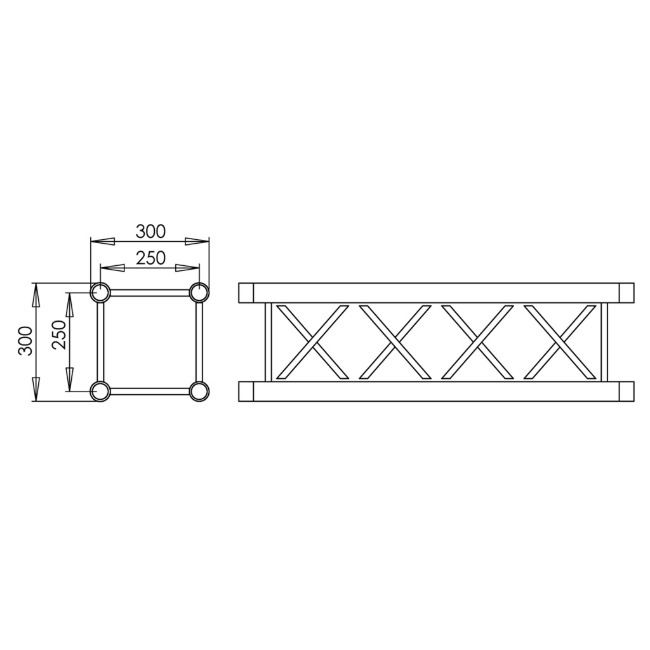

| Dimensions | 300 x 300 mm |
| Main Tube Section | 50 x 2 mm |
| Main Tube Alloy | EN AW 6082T6 |
| Brace Section | 16 x 2 mm |
| Brace Alloy | EN AW 6082T6 |
| Surface Area | 12.06 cm² |
| Finish Options | Silver or Black |
| Weight per Meter | 5.8 kg/m |
| Weight (0.5m) | 4.3 kg |
| Coupling System | CBC50F |
| Included Hardware | 4 Double Cones, 4 Pins, 4 Threaded Pins, 4 R Safety Clips |
