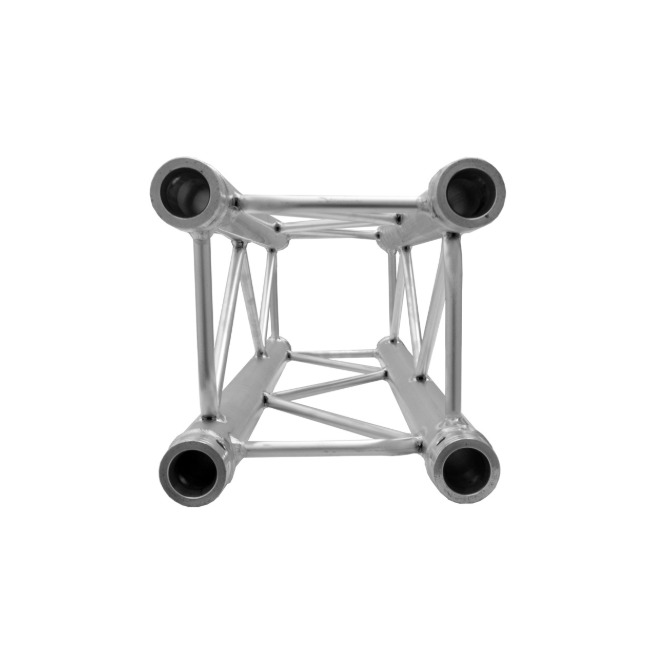

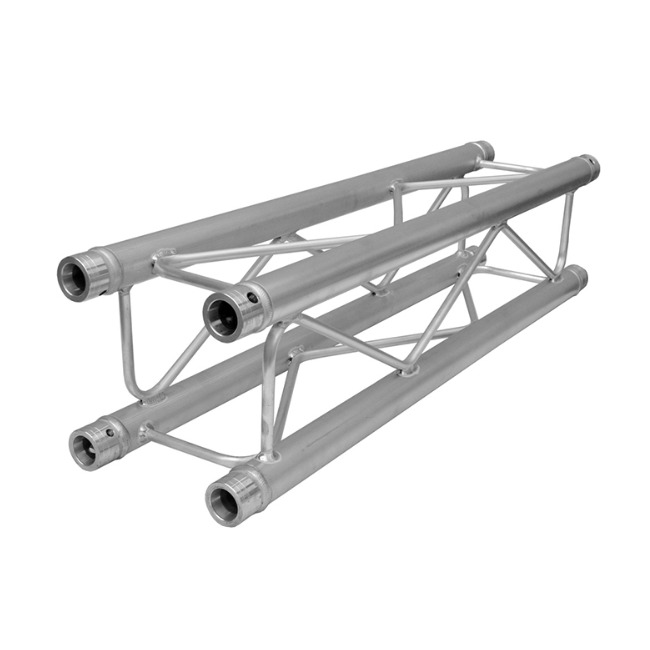

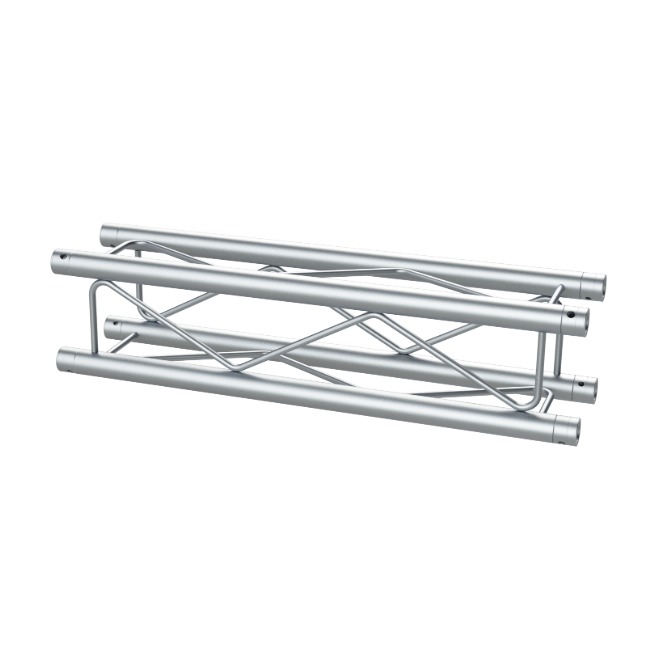

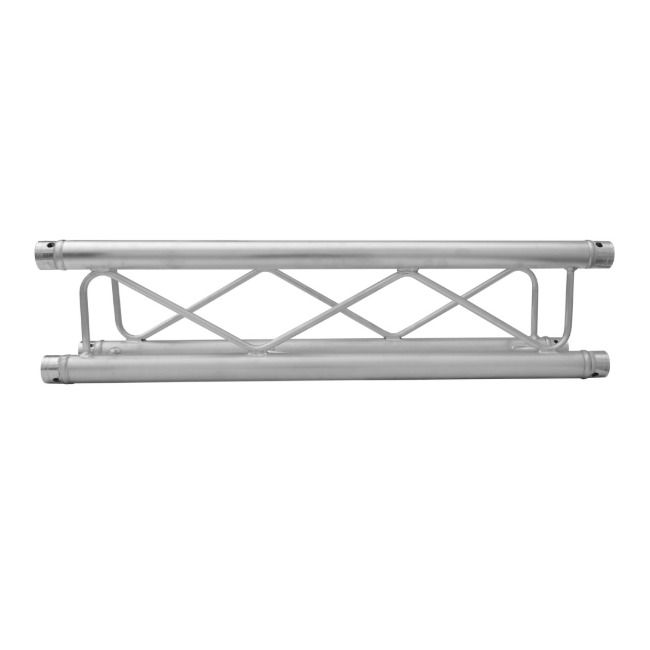

Fantek FK25Q 250mm Aluminium Square Truss
- The Fantek FK25Q is a professional 250x250mm aluminium square truss featuring durable 50mm main tubes, F Series compatibility, and a lightweight design ideal for staging, lighting, and event installations
- Brand:
- Product Code:FK25Q
- Professional aluminium square truss
- 250 x 250 mm truss profile
- F SERIES compatible design
- 50 x 2 mm main tube construction
- 13 x 1.5 mm diagonal braces
- Manufactured from high-strength aluminium alloys
- Available in 0.5m, 1m, 2m, and 3m lengths
- Available in silver or black finish
- CBC50F coupling system
FEATURES
250 x 250mm Square Truss Design
Professional aluminium truss section suitable for staging, lighting, exhibition, and rigging applications.Heavy-Duty Main Tubes
Constructed with 50 x 2mm main tubes for excellent structural strength and reliability.Reinforced Bracing System
Features 13 x 1.5mm diagonal braces for improved stability and load distribution.F Series Compatible
Designed to integrate seamlessly with WORK PRO F Series truss systems.CBC50F Coupling System
Provides secure and efficient truss connections for professional installations.Multiple Length Options
Available in 0.5m, 1m, 2m, and 3m sections to suit a variety of project requirements.Silver or Black Finish
Choose from professional silver or black finishes to match different production environments.Complete Connection Hardware Included
Supplied with double cones, pins, threaded pins, and R safety clips for quick assembly.Lightweight Aluminium Construction
Manufactured from premium aluminium alloys for durability and easy handling.Professional Installation Solution
Ideal for concerts, theatre productions, exhibitions, event venues, clubs, and fixed installations.
| Specification | Details |
|---|---|
| Model | FK25Q |
| Brand | Fantek |
| Series | F SERIES |
| Type | Aluminium Square Truss |
| Dimensions | 250 x 250 mm |
| Main Tube Section | 50 x 2 mm |
| Main Tube Alloy | EN AW 6082T6 |
| Brace Section | 13 x 1.5 mm |
| Brace Alloy | EN AW 6060F22 |
| Surface Area | 12.06 cm² |
| Finish Options | Silver or Black |
| Weight per Meter | 5.1 kg/m |
| Weight (0.5m) | 4.2 kg |
| Weight (1m) | 6.9 kg |
| Weight (2m) | 9.6 kg |
| Weight (3m) | 12.3 kg |
| Coupling System | CBC50F |
| Included Hardware | 4 Double Cones, 4 Pins, 4 Threaded Pins, 4 R Safety Clips |
| Available Lengths | 0.5m (1.64 ft), 1m (3.28 ft), 2m (6.56 ft), 3m (9.84 ft) |
| Finish | Silver or Black |
