Product Code:5107902528
With a career of being copied, the EVH Striped Series guitars put Eddie Van Halen's historic and authentic style in your hands ... These are high powered, high-performance machines as kickbutt to look at as they are to play.

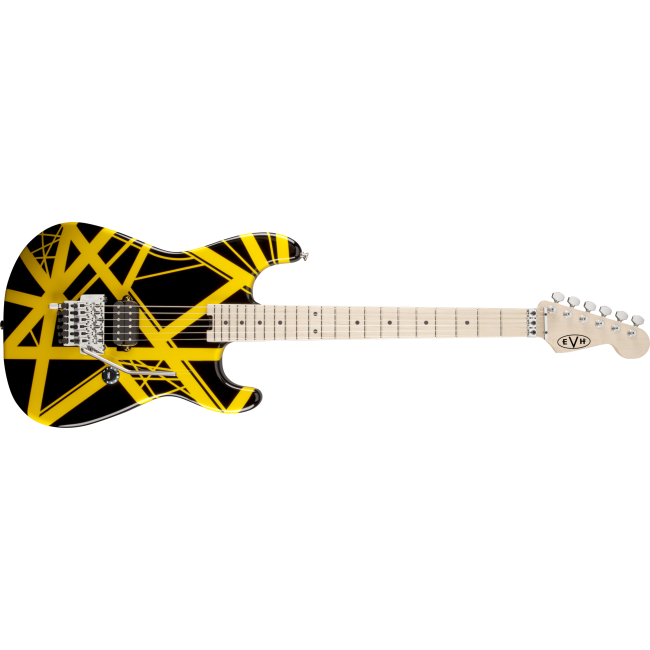

The Striped Series guitar features a basswood Stratocaster-style body decked out in Eddie's famed striped graphics - Red with Black Stripes, Black with Yellow Stripes and White with Black Stripes.
These unique guitars also have a graphite-reinforced bolt-on quartersawn maple neck with a hand-rubbed oil finish on the back, 12"-16" maple fingerboard with 22 jumbo frets and black dot inlays and a thumbwheel truss rod adjustment wheel for convenient neck relief tweaks.
Powered by a single ferocious direct-mount Wolfgang humbucking bridge pickup, the Striped Series guitars also feature a single skirted Strat-style volume control knob (labeled "tone") that houses a 500K EVH Bourns low friction pot with treble bleed circuit, single-ply black pickguard (White with Black Stripes model only), bar string retainer and Floyd Rose locking nut, EVH-branded Floyd Rose locking tremolo with EVH D-Tuna, EVH die-cast tuners, chrome hardware, vintage-style strap buttons, EVH neck plate and licensed Fender Strat headstock. The White with Black Stripes model also features a top-mount output jack.
| General | |
| Series | Striped Series |
|---|---|
| Orientation | Right-Hand |
| Color | Black with Yellow Stripes |
| Country of Origin | MX |
| Neck | |
| Headstock | Licensed Fender Stratocaster |
| Neck Material | Quartersawn Maple |
| Neck Finish | Hand-Rubbed Satin Urethane |
| Neck Shape | EVH Modified "C" Backshape |
| Neck Construction | Bolt-On with Graphite Reinforcement |
| Neck Thickness | .790" at 3rd Fret & .810" at 12th Fret |
| Fingerboard Radius | 12"-16" Compound Radius (304.8 mm to 406.4 mm) |
| Fingerboard Material | Maple |
| Position Inlays | Black Dot |
| Number of Frets | 22 |
| Truss Rod Nut | Heel-Mount Truss Rod Adjustment Wheel |
| String Nut | Floyd Rose R3 Locking |
| Nut Width | 1.6875" (42.86 mm) |
| Nut Material | Floyd Rose R3 Locking |
| Fret Size | Jumbo |
| Scale Length | 25.5" (64.77 cm) |
| Body | |
| Body | Basswood |
| Body Finish | Gloss Urethane |
| Body Shape | Other |
| Body Material | Basswood |
| Hardware | |
| Bridge | EVH-Branded Floyd Rose Locking Tremolo with EVH D-Tuna |
| Tremolo Block | Brass |
| Pickup Covers | Black |
| Control Knobs | Black Stratocaster-Style Skirt (Labeled "Tone") |
| Hardware Finish | Chrome |
| Tuning Machines | EVH-Branded Gotoh |
| String Trees | Floyd Rose Retainer Bar |
| Strings | EVH Nickel Plated Steel (.009–.042 Gauges) |
| Tremolo Arm | Floyd Rose 1000 Series Locking |
| Neck Plate | 4-Bolt Standard |
| Strap Buttons | Oversized |
| Electronics | |
| Bridge Pickup | EVH Wolfgang Humbucking |
| Pickup Configuration | H |
| Controls | Volume (500K EVH Bourns Low Friction Pot) with Treble Bleed Circuit |
| Switching | None |
| Measurements | |
| Shipping Dimensions | 4.50 x 15.30 x 42.30 in |
| Shipping Weight | 10.50 lb |
| Shipping Length | 42.30 in |
| Shipping Height | 4.50 in |
| Shipping Width | 15.30 in |
| Accessories | |
| Included Accessories | Tremolo Arm, Hex Keys & User Manual |
| Truss Rod Wrench | 2.5 mm Hex |
