Product Code:5107902515

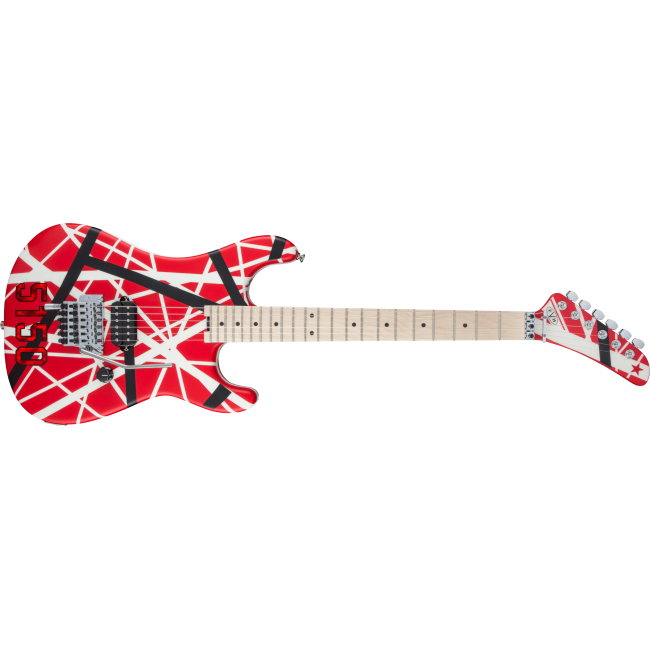

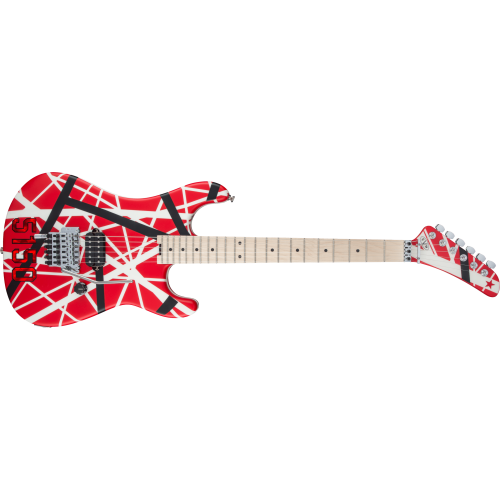

When Eddie Van Halen introduced his famous red, white and black striped 5150™ guitar in 1984, he never would have fathomed the thousands of copies it would inspire. But then again, Eddie has made a career of being copied in every which way imaginable. EVH proudly introduces a new Striped Series 5150 model based on his original instrument, featuring his distinctively striped 5150 motif and single humbucker setup.

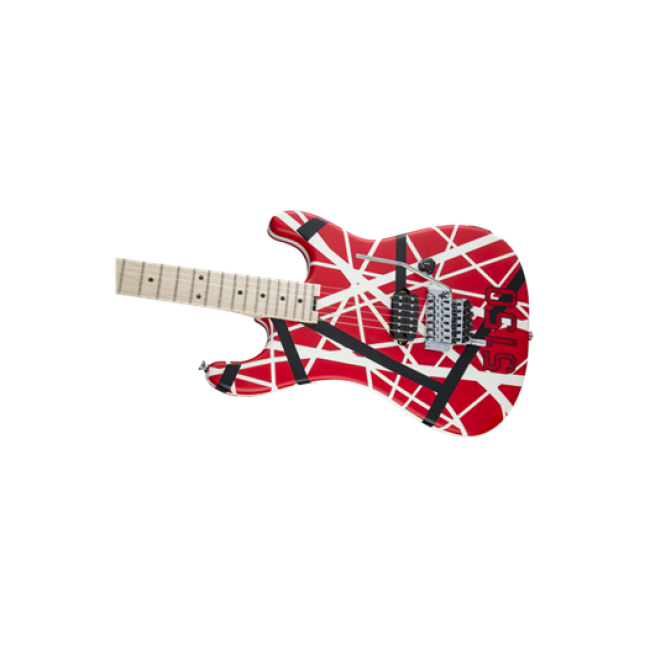

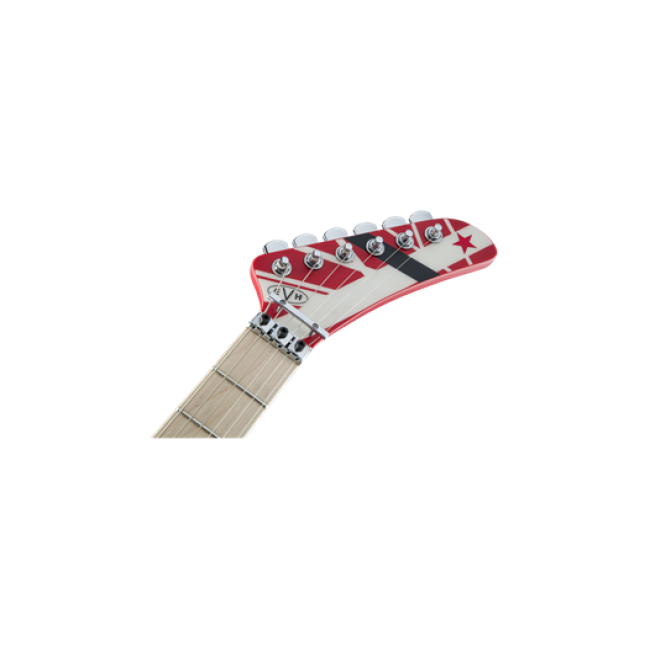

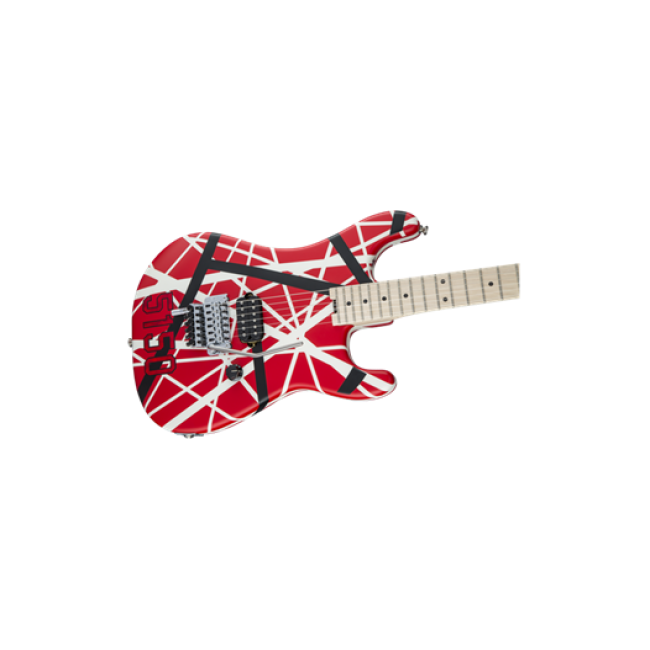

The Striped Series 5150 has a basswood body identical to the original, with a bolt-on quartersawn maple neck featuring a comfortable modified "C" profile, hand-rubbed satin urethane finish on the back and unique "hockey stick" headstock. The fast-playing 12"-16" compound radius maple fingerboard has 22 jumbo frets, black dot inlays and a convenient heel-mount truss rod adjustment wheel.
The 5150 is also fitted with a custom-designed EVH® Wolfgang® alnico 2 humbucking bridge pickup, delivering the perfect amount of power and articulation with sweet sustain and thick chunky rhythms in a perfectly balanced EQ curve. A custom designed EVH-branded low-friction volume knob provides for unmatched performance and even-volume tapering for the smoothest volume swells.
Decked out with a rock solid "dive bomb" certified EVH-branded Floyd Rose® bridge, the locking tailpiece features fine tuners for each string and a patented EVH D-Tuna® for switching back and forth from drop-D to standard tuning in an instant.
With its quintessential red 5150 hologram numbers and star decals, the Striped Series 5150 is a high-powered, high-performance machine that's as kickass to look at as it is to play.
| General | |
|---|---|
| Series | Striped Series |
| Orientation | Right-Hand |
| Color | R/B/W "5150" Striped Pattern |
| Country of Origin | MX |
| Neck | |
| Headstock | EVH® Hockey Stick |
| Neck Material | Quartersawn Maple |
| Neck Finish | Hand-Rubbed Satin Urethane |
| Neck Shape | EVH® Modified "C" Backshape |
| Neck Construction | Bolt-On with Graphite Reinforcement |
| Neck Thickness | .790" at 3rd Fret & .810" at 12th Fret |
| Fingerboard Radius | 12"-16" Compound Radius (304.8 mm to 406.4 mm) |
| Fingerboard Material | Maple |
| Position Inlays | Black Dot |
| Number of Frets | 22 |
| Truss Rod | EVH®-Branded with Wheel |
| Truss Rod Nut | Heel-Mount Truss Rod Adjustment Wheel |
| String Nut | Floyd Rose® R3 Locking |
| Nut Width | 1.685" (42.8 mm) |
| Nut Material | Floyd Rose® R3 Locking |
| Fret Size | Jumbo |
| Scale Length | 25.5" (648 mm) |
| Body | |
| Body Material | Basswood |
| Body Finish | Gloss Urethane |
| Body Shape | 5150™ |
| Hardware | |
| Bridge | EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna® |
| Bridge Mounting | 2-Point Modern |
| Tremolo Block | Brass |
| Pickup Covers | Black |
| Control Knobs | Black Knurled with White Indicator |
| Hardware Finish | Chrome |

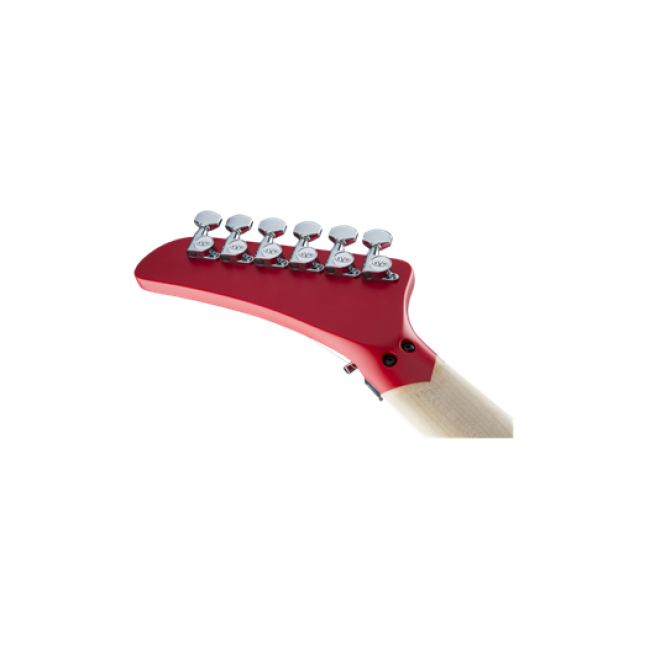

| Tuning Machines | EVH®-Branded Gotoh® |
| String Trees | Floyd Rose® Retainer Bar |
| Strings | EVH® Nickel Plated Steel (.009-.042 Gauges) |
| Tremolo Arm | Floyd Rose® 1000 Series Locking |
| Neck Plate | 4-Bolt Standard |
| Strap Buttons | Oversized |
| Electronics | |
| Bridge Pickup | Direct Mount EVH® Wolfgang® Humbucking |
| Pickup Configuration | H |
| Controls | Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit |
| Switching | None |
| Measurements | |
| Shipping Dimensions | 4.50 x 15.50 x 33.50 in |
| Shipping Weight | 11.25 lb |
| Shipping Length | 33.50 in |
| Shipping Height | 4.50 in |
| Shipping Width | 15.50 in |
| Accessories | |
| Included Accessories | Tremolo Arm, Hex Keys & User Manual |
| Truss Rod Wrench | 2.5 mm Hex |
