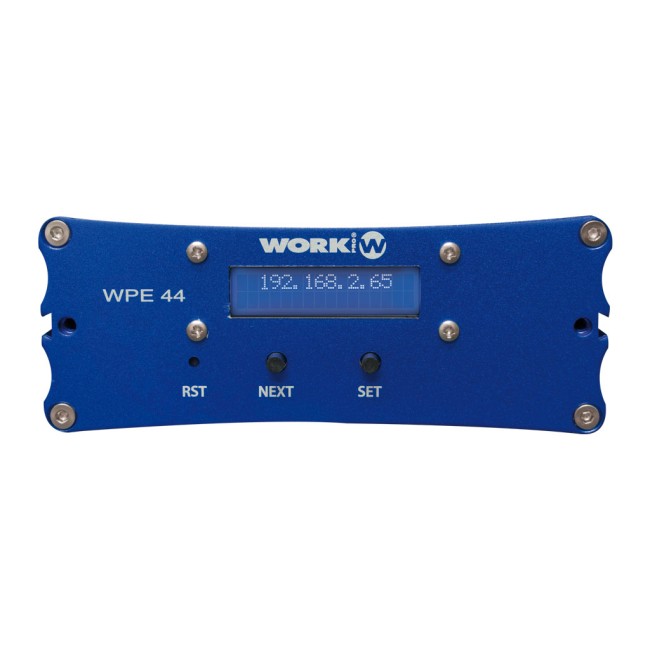

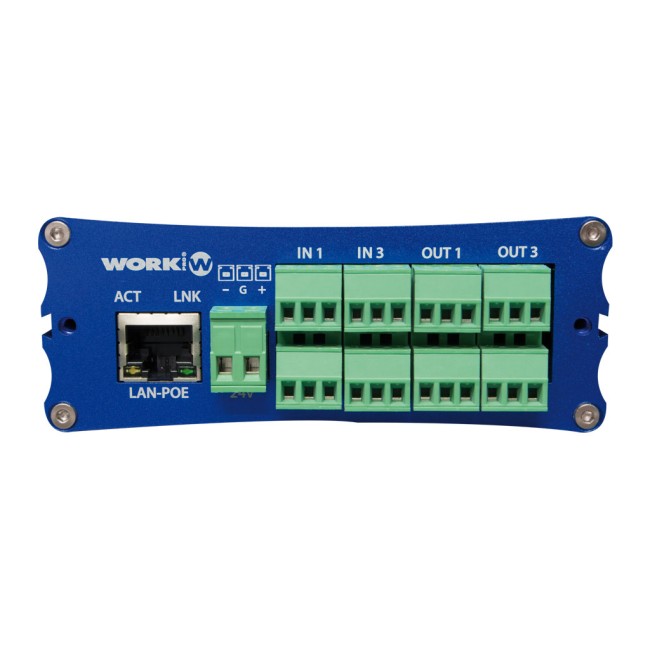

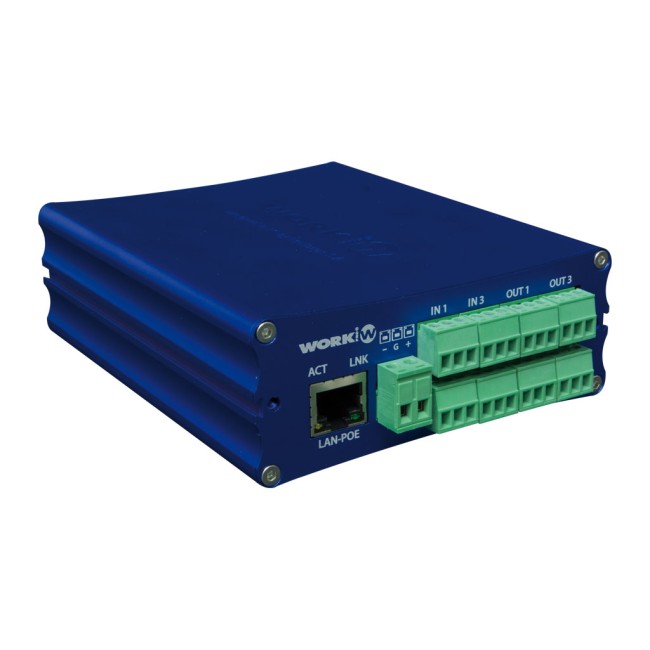

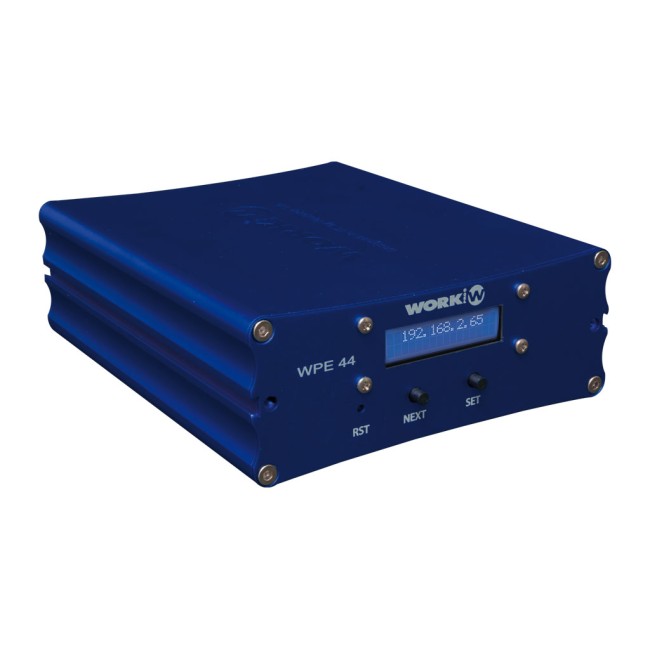

WPE 44 is a 4 input, 4 output digital audio signal processor with external control capability. Its design and compact format make it perfect for use by audiovisual integrators and fixed installations. The device has balanced inputs and outputs with 3-contact Euroblock connectors to provide them with greater immunity against electromagnetic interference. The external control of this device is carried out thanks to its Ethernet connectivity, which can be done through the dedicated WorkCAD3 software or through OSC commands by third-party devices.
FEATURES
- 4 In / 4 Out.
- Control software WorkCad 3.
- Control via OSC commands.
| Audio input | 4 balanced (Euroblock 3 pins) |
| Processing per input channel | 4 filters, Gain, Mute, Reverse polarity |
| Input Sensitvity | 14 dBu (balanced) (3.88 Vrms) |
| Audio Output | 4 balanced (Euroblock 3 pins) |
| Output channel processing | 15 filters, 2 crossover filters (High pass, Low Pass), Input sum weighted matrix, Delay up to 8.19 ms, Compressor / Limiter / Noise Gate |
| Output sensitivity | +10 dBu (balanced) (2.45 Vrms) |
| S/N ratio | > 100 dB |
| THD+N | < 0.01 % |
| Bandwidth | 20 Hz - 24000 Hz |
| Sampling frecuency | 48000 Hz |
| Filter types | Low pass, High pass, Low Shelving, High Shelving, Band pass, Peak, Notch and All pass |
| No. Memories | 8 |
| Control protocols | OSC over UDP and RUDP |
| Network Ports | UDP 9000 / RUDP 9002 |
| Ethernet | 100 base TX |
| Includded accessories | Wings for flat surface installation |
| Compatible accessories | BL AR 19 (4 device in 1 rack unit installation accessory) |
| Power supply | 24 Vdc / 500 mA (Source not included), PoE Class 0 802.3af |
| Consumption | 3.6 W |
| Dimensions | 109 × 133.7 × 40.45 mm |
| Weight | 360 g |
