Product Code:50WFS010

Equipson Work WFS 10 CX Outdoor Sound Projector

  • This audio projector has been designed for outdoor appliances. It incorporates a 10" coaxial transducer and a 1" compression driver.
  • Brand:
*only1 item(s) remaining
  • AED 4,156.95

  • -
  • +
*Rate inclusive of VAT. Delivery time: 2 - 4 days

This audio projector has been designed for outdoor appliances. It incorporates a 10" coaxial transducer and a 1" compression driver.It elevate IP range (IP 65) makes it very suitable for sports facilities, entertainment complexes, etc.Its 90ºx90º directivity in most of the band, making easier the contractors job designing an installation with the adequate audio dispersion. Its 2 connectivity modes (low impedance 8 Ohm and 100V line) allows to set the devices to several acoustic solutions.

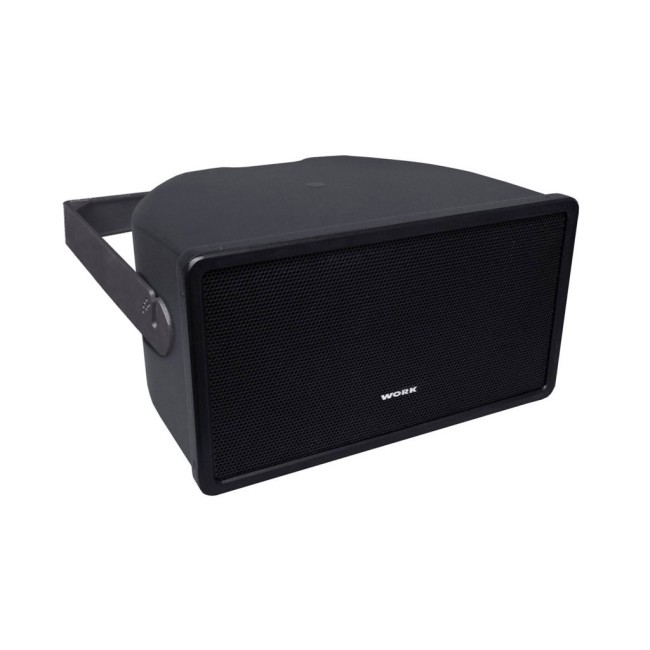

WFS 10 CX incorporates the WSTB 10 H for an easy and fast installation.

TypePassive audio projector. 2 ways
Low Impedance Power150 W RMS
L100V Power120 W
Nominal Impedance8 Ohm
LF Transducer10" Woofer
HF Transducer1" Compression driver
Sensitivity (1W @ 1m)104 dB
SPL Max126 dB / 131 dB peak
Coverage Angle (H x V)90º x 90º (500 Hz - 4 KHz)
Frequency Range89 Hz - 20.5 KHz
HPF filter recommended72 Hz
Enclosure materialFiberglass
GrillMetal
Inserts / RiggingInstallation bracket WSTB 10 V and WSTB 10 H
ColourBlack or white
IP ProtectionIP 65
