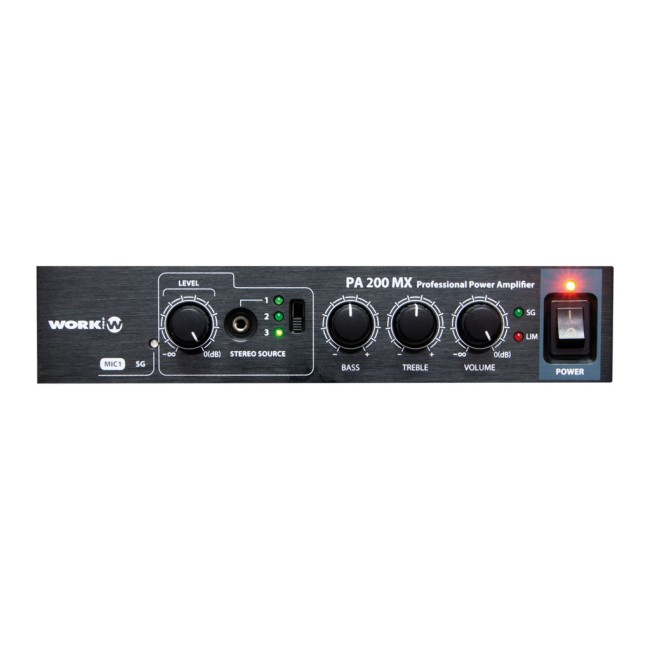

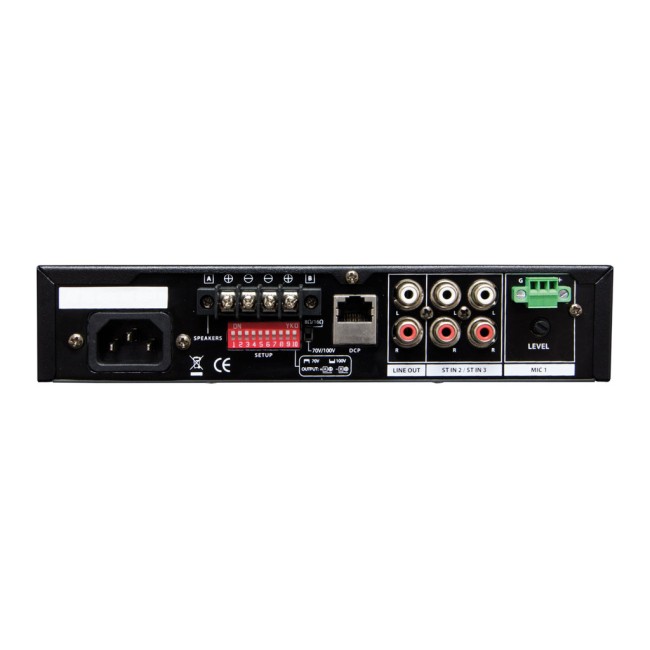

PA 200 MX is a 200 W amplifier for installation, which can work in low impedance or in 70/100 V line. It incorporates 3 LINE inputs (LINE 1 with BLUETOOTH functionality) with selector, volume, and 2 tone controls. It also has a microphone input with Euroblock connector. The rear panel has a dipswitch selector that allows selecting the operating mode (feedback suppression, microphone gain, microphone priority, stereo / mono input, low impedance or L70 / 100V), and an RJ45 connection that supports RS485 commands. from an external device.
FEATURES
- Switch mode power supply.
- 3 LINE input with selector and own volume.
- Bluetooth.
- RJ45 (RS485 commands).
| Type | Low impedance / 8/16 Ohm), Line 70/100 V |
| Power | 2 x 100W @ 8 Ohm / 200W (70/100V Line) |
| THD+N | <0.1% @ 1 kHz, 15W, 8 Ohm / 16 Ohm, <0.2% 1 kHz, 30W, 70V / 100V |
| Frequency Range | 20 Hz - 20 KHz |
| Controls | Line volume, Mic gain, Tone control (bass, treble), Master volume, Function selector |
| Connections | Mic: 3 pin euroblock, Line in: RCA, Minijack, Line out: RCA, Amp out: terminals, RS485: RJ45 |
| Other functions | Bluetooth, RS485 commands, antifeedback, micro priority |
| Power supply | 100-240 V - 50/60Hz |
| Dimensions | 215 x 48 x 264 mm |
| Weight | 2.3 Kg |
