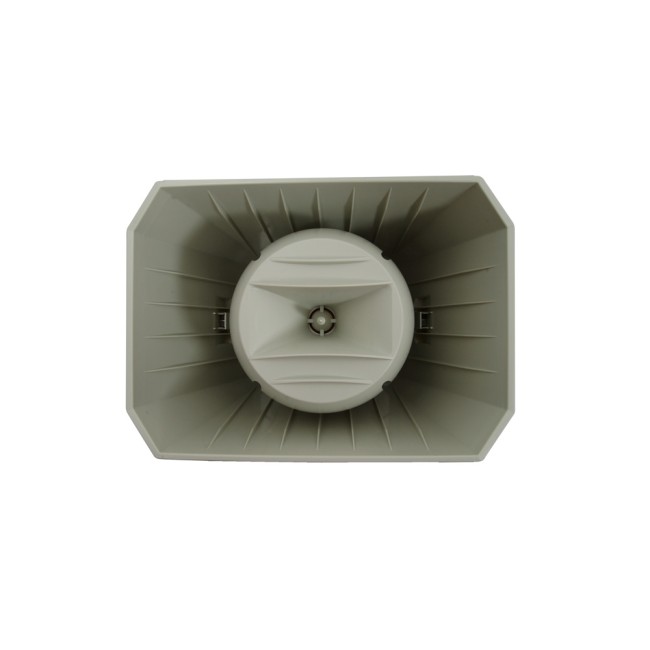

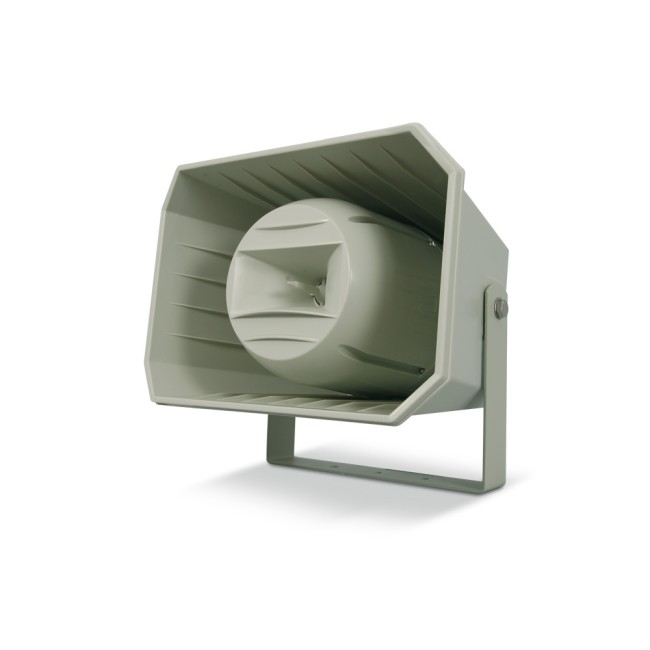

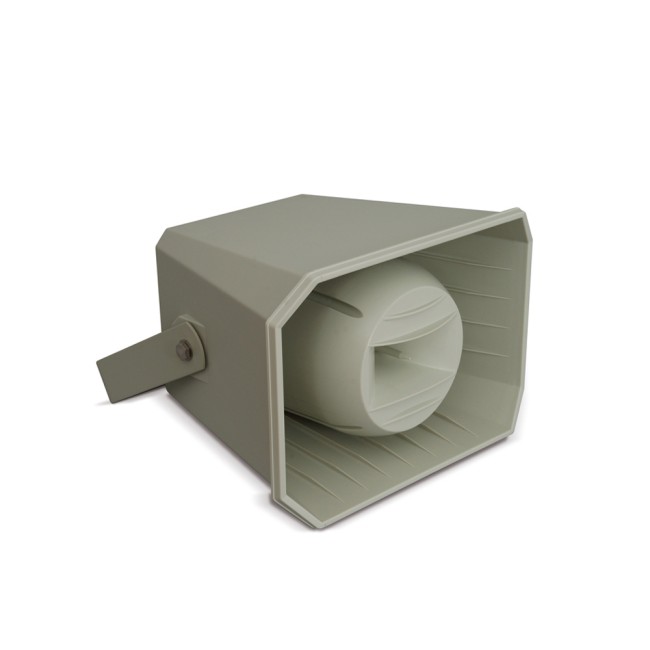

MSH 30/BT is a sound projectors with a full range speaker. It provides efficient directionality. MSH 30/BT features a two way system to optimize acoustic response. Thanks to its high IP range, it is ideal for outdoor installations and other areas suffering adverse weather conditions. Its aluminium handle enables a fast mounting operation.
FEATURES
High quality sound projector.
Designed to provide an efficient directionality.
Suitable for high impedance (70/100 V voltage line) and low impedance (8 ohm) installations.
Excellent response for any frequency range.
Ideal for outdoor installations and other areas suffering adverse weather conditions.
| Type | Passive sound projector |
| Low Impedance Power | 50 W |
| L100V Power | 50 W (200 ohm) / 25 W (400 ohm) / 12,5 W (800 ohm) / 9 W (1k1 ohm) / 4,5 W (2k2 ohm) / 3,5 W (2k8 ohm) |
| L70V Power | 25 W (197 ohm) / 12,5 W (392 ohm) / 6,5 W (753 ohm) / 4,5 W (1k2 ohm)/ 2,7 W (1k8 ohm) / 1,7 W (2k8 ohm) |
| Nominal Impedance | 8 Ohm |
| LF Transducer | 6" Woofer |
| HF Transducer | 2.5" Tweeter |
| Sensitivity (1W @ 1m) | 99 dB |
| SPL Max | 115 dB |
| Frequency Range | 90 Hz - 20 KHz |
| Enclosure material | ABS plastic |
| Inserts / Rigging | Wall mounting bracket includded |
| Colour | RAL 7035 |
| IP Protection | IP 56 |
