Product Code:50SNN009

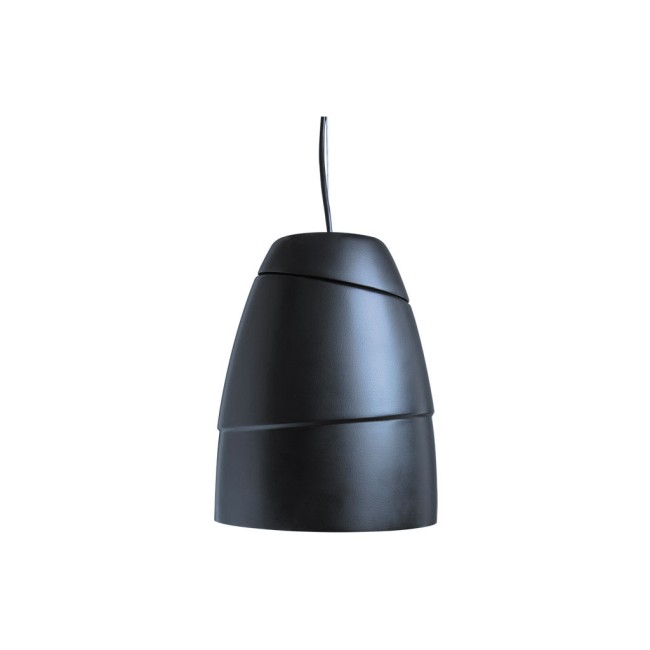

Equipson SN SUB 8 Passive Suspension Subwoofer
- SN SUB 8 is a passive "pendant" subwoofer intended to provide low-end reinforcement to the SN Series full-range pendant loudspeaker.
- Brand:
*only3 item(s) remaining
-
AED 3,574.20
- -
- +
*Rate inclusive of VAT. Delivery time: 2 - 4 days
SN SUB 8 is a passive "pendant" subwoofer intended to provide low-end reinforcement to the SN Series full-range pendant loudspeaker. Together they provide voice intelligibility and musical clarity and depth in acoustically complex environments such as shopping malls, houses of worship, restaurants, conference halls, hotels, etc., where the reverb level is very high. Each unit features an 8" driver, 2" voice coil, in a bass reflex enclosure with optimized dual resonators. The driver and its rubber surround allow deep, distortion-free sound even at high levels. The enclosure is made of one-piece fiberglass, so there are no visible screws.
Features
- Pendant type loudspeaker.
- Fiberglass.
- Low impedance.
| Type | Passive subwoofer. Bass reflex. Pendant |
| Low Impedance Power | 350 W RMS |
| Nominal Impedance | 8 Ohm |
| LF Transducer | 8" Woofer, 2" Voice Coil |
| Sensitivity (1W @ 1m) | 86 dB SPL |
| SPL Max | 116.5 dB SPL peak |
| Coverage Angle (H x V) | Omnidirectional |
| Frequency Range | 37 Hz - 185 Hz (-10 dB), 42 Hz - 165 Hz (-6 dB) |
| HPF filter recommended | Butterworth 24dB/Oct, 20Hz |
| Connections | Two pole stripped wire |
| Enclosure material | High quality fiberglass |
| Grill | Steel grille, with internal foam protection |
| Inserts / Rigging | A steel rigging point |
| Colour | Black or white |
| Includded accessories | A main steel rigging cable 5m long, 2mm in diameter (CS 10 E), and a steel safety cable 5m long, 2mm in diameter (CS 10 E) |
| Optional accessories | Customizable top cap |
| Dimensions | 437 x 347 x 347 mm |
| Weight | 12 Kg |
