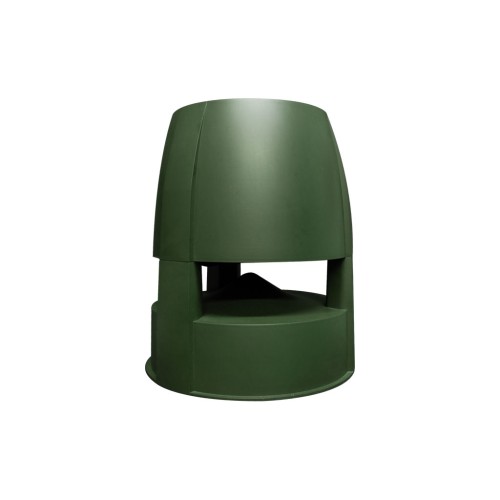

Equipson NGS-80 is new series of garden speakers for low impedance installations. The series consists of the NGS 80 L model with its 2-way system, and NGS 80 S that acts as a subwoofer. NGS 80 L has been designed to obtain an omnidirectional dispersion of sound, covering a wide area with perfectly integrated elements.
- 2-ways loudspeaker.
- 8'' Woofer.
- 1.4'' Tweeter.
- Omnidirectional Coverage.
- High IP rate.
- Low impedance configuration.
| LF transducer | 8'' Diameter, 1.4'' coil |
| HF Transducer | 1.4'' Tweeter |
| Nominal Impedance | 8 ohm |
| Minimum Impedance | 6.1 ohm @ 215 Hz |
| 100V Line Power Taps | 20W / 40W / 60W |
| RMS Power | 60W @ 8 ohm |
| Program Power | 120W @ 8 ohm |
| Peak Power | 240W @ 8 ohm |
| Sensitivity (2.38v @1m) | 85db SPL |
| Peak SPL | 112dB SPL |
| Frequency Range (Full Space) | 53Hz/90Hz - 22kHz with recomended presets |
| Recommended High Pass Filter (Standalone) | Butterworth 24 dB/Oct, 50Hz |
| Recommended High Pass Filter (With NGS 80 S) |
Butterworth 24 dB/Oct, 50Hz |
| Coverage (-6dB) | 360º |
| Dimensions | Ø340 x 400 mm |
| Weight | 4.4 kg |
