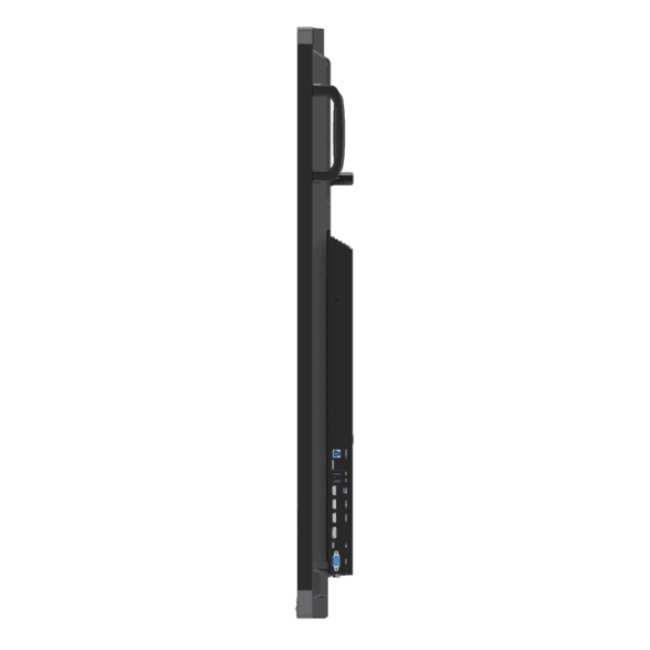

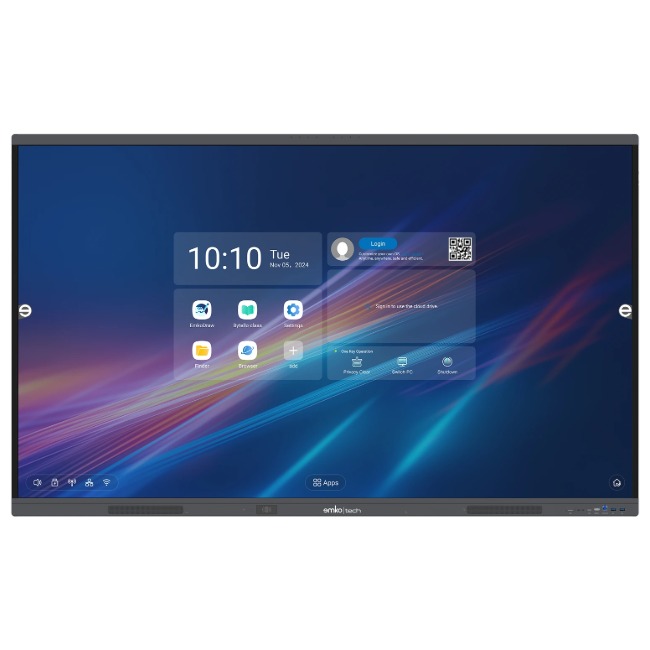

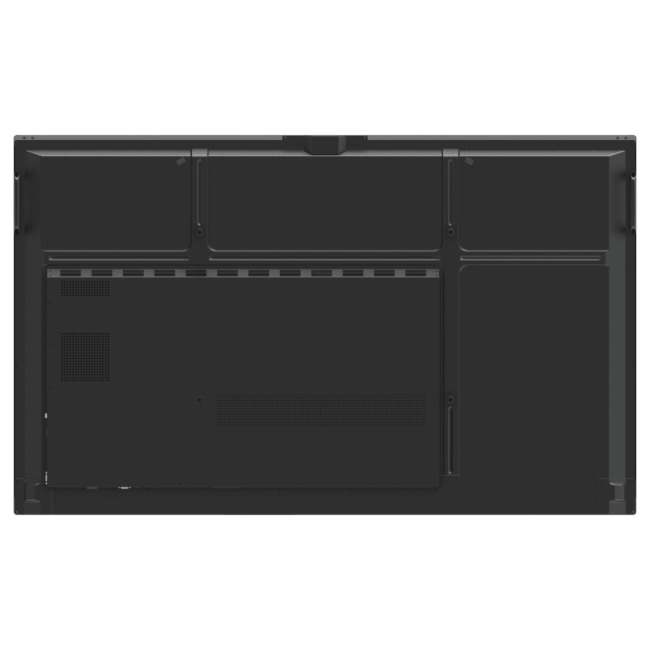

EmkoTech Nova 5 Pro 98-Inch 4K UHD Interactive Flat Panel Display
- The EmkoTech Nova 5 Pro is a 98-inch 4K UHD interactive flat panel featuring Android 14, 50-point touch, zero bonding technology, and 8GB RAM for advanced collaboration
- Brand:
- Product Code:EMKOTECHNOVA5PRO98
- 98-inch 4K UHD display
- Zero Bonding technology
- 50-point infrared touch
- Android 14 operating system
- 8GB RAM
- Wi-Fi 6E and Bluetooth 5.2
- Dual 65W USB-C connectivity
- 8-microphone array
- NFC support
- OPS expansion support
FEATURES
98-Inch 4K UHD Display
Delivers exceptional visual clarity with a massive 98-inch screen and 3840 × 2160 Ultra HD resolution.
Zero Bonding Technology
Provides enhanced image clarity, reduced parallax, and highly accurate touch performance for a premium writing experience.
50-Point Multi-Touch System
Supports simultaneous interaction from multiple users, making it ideal for collaborative learning and meetings.
Android 14 Operating System
Offers advanced performance, enhanced security, and seamless application compatibility.
Dual Pen & Pressure Sensitivity
Supports active and passive infrared pens simultaneously for natural writing and multi-user collaboration.
Palm Rejection Technology
Automatically ignores unintended palm contact for smooth and accurate annotation.
Dual 65W USB-C Connectivity
Enables video, audio, touch, LAN, camera, microphone connectivity, and device charging through a single cable.
AirClass Voting System
Supports interactive quizzes, polling, voting, and audience participation in classrooms and boardrooms.
Wi‑Fi 6E & Bluetooth 5.2
Provides reliable high-speed wireless connectivity and device integration.
Built-In 8-Microphone Array
Captures voice clearly from distances up to 8 meters for conferencing and hybrid learning environments.
NFC & QR Security Features
Supports quick authentication, pairing, and secure screen locking.
Screen Sharing & Recording
Includes wireless screen casting and built-in recording capabilities for presentations and training sessions
| Specification | Details |
|---|---|
| Model | EMKOTECHNOVA5PRO98 |
| Brand | EmkoTech |
| Display Size | 98 Inches |
| Resolution | 3840 × 2160 (4K UHD) |
| Aspect Ratio | 16:9 |
| Display Area | 2158.85 × 1214.35 mm |
| Display Colors | 1.07 Billion (10-bit) |
| Color Gamut | 72% NTSC |
| Contrast Ratio | 1200:1 |
| Viewing Angle | 178° (H/V) |
| Backlight | DLED |
| Brightness | 350 cd/m² (Min), 400 cd/m² (Typical) |
| Refresh Rate | 60Hz |
| Lifespan | ≥ 50,000 Hours |
| Operating System | Android 14 |
| CPU | Octa-Core (4× A72 + 4× A53) |
| RAM | 8GB |
| Touch Technology | Infrared |
| Touch Points | 50 Points |
| Touch Accuracy | ±1 mm |
| Touch Response | ≤5 ms |
| Writing Height | 2 mm |
| Touch Resolution | 32768 × 32768 |
| Supported OS | Windows 10, Android, Linux, Mac OS X, Chrome OS |
| Audio Channel | 2.0 Channel |
| Microphones | 8-Microphone Array |
| Pickup Distance | 0-8 m |
| HDMI Inputs | 3 × HDMI IN |
| DisplayPort Input | 1 × DP IN |
| VGA Input | 1 × VGA IN |
| HDMI Output | 1 × HDMI OUT |
| USB Ports | 4 × USB 3.0, 1 × USB 2.0, 2 × Touch USB |
| USB-C Ports | 2 × USB Type-C (65W PD) |
| Audio Ports | Audio IN, Audio OUT, SPDIF |
| Network | 2 × RJ45 (IN/OUT) |
| Wireless | Wi‑Fi 6E, Bluetooth 5.2 |
| Additional Interfaces | RS232, TF Card Slot, NFC |
| Product Dimensions | 1709.4 × 1031 × 85.5 mm |
| Net Weight | 84.35 kg |
| Gross Weight | 108.48 kg |
| VESA Mount | 800 × 600 mm |
| Power Supply | 100-240V ~ 50/60Hz, 4.0A |
| Optional Module | OPS Computer Module (OPS 80P) |
