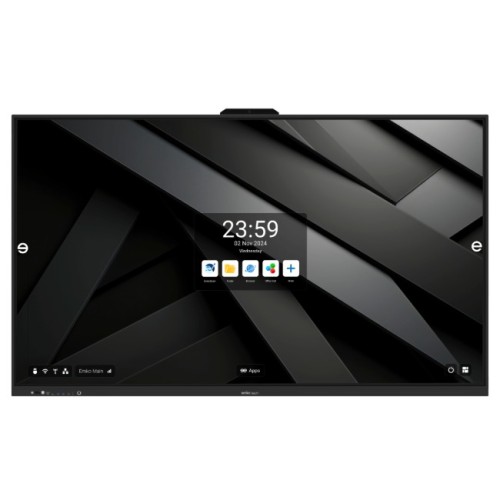

EmkoTech EmkoBoard V6 86-Inch 4K UHD Interactive Flat Panel Display
- The EmkoTech EmkoBoard V6 is an 86-inch 4K UHD interactive flat panel featuring Android 16, 40-point IR touch, 8GB RAM, and 128GB storage for education and business collaboration
- Brand:
- Product Code:EMKOTECHEMKOBOARDV686
- 86-inch 4K UHD display
- 40-point infrared touch technology
- Android 16 operating system
- 8GB RAM and 128GB storage
- 8-core Cortex processor
- Wi-Fi 6 and Bluetooth 5.4
- Dual 16W front-facing speakers
- OPS expansion slot
- Fingerprint reader
- Optional camera and microphone module
FEATURES
86-Inch 4K UHD Display
Delivers stunning image clarity with a 3840 × 2160 Ultra HD resolution for classrooms, boardrooms, and large collaboration spaces.
40-Point Multi-Touch Technology
Supports up to 40 simultaneous touch points for interactive learning, presentations, brainstorming, and teamwork.
Android 16 Operating System
Provides fast performance, smooth multitasking, and excellent application compatibility.
Powerful 8-Core Processor
Powered by 4 × Cortex-A72 and 4 × Cortex-A53 cores for responsive performance and efficient content delivery.
High-Precision Infrared Touch
Features fast touch response, high scan rates, and smooth writing experiences for classroom and meeting environments.
Advanced Connectivity
Includes Wi-Fi 6, Bluetooth 5.4, HDMI, USB, Type-C, RJ45, SPDIF, and RS232 ports for maximum flexibility.
Integrated Fingerprint Reader
Enhances security and simplifies user access management.
OPS Expansion Capability
Includes an 80-pin OPS slot for adding a Windows PC module and extending functionality.
Powerful Front-Facing Audio
Dual 16W speakers provide clear and powerful sound for presentations, training, and video conferencing.
Optional Video Conferencing Support
Supports optional camera and microphone modules for hybrid learning and meeting applications.
Professional Collaboration Solution
Ideal for classrooms, universities, training centers, corporate boardrooms, and conference facilities.
Premium Commercial Construction
Built with tempered glass and a durable black aluminum frame for long-term reliability
| Specification | Details |
|---|---|
| Model | EMKOTECHEMKOBOARDV686 |
| Brand | EmkoTech |
| Display Size | 86 Inches |
| Panel Technology | LCD with DLED Backlight |
| Resolution | 3840 × 2160 (4K UHD) |
| Aspect Ratio | 16:9 |
| Brightness | 400 cd/m² |
| Contrast Ratio | 5000:1 |
| Response Time | 6.5 ms |
| Refresh Rate | 60Hz |
| Viewing Angle | 178° / 178° |
| Lifespan | >50,000 Hours |
| Color Gamut | 72% NTSC |
| Touch Technology | Infrared (IR) |
| Touch Points | 40 Points |
| Touch Response Time | <5 ms |
| Touch Resolution | 32768 × 32768 |
| Scan Rate | ≥200 Hz |
| Minimum Object Size | >2 mm |
| CPU | 8-Core (4 × Cortex-A72 + 4 × Cortex-A53) |
| GPU | Mali-G52 MC2 |
| Operating System | Android 16 |
| RAM | 8GB DDR4 |
| Storage | 128GB ROM |
| Speakers | 2 × 16W Front-Facing |
| Connectivity | Wi-Fi 6.0, Bluetooth 5.4 |
| Front Interface | Touch 2.0, HDMI In 2.0, USB 3.0, USB 2.0, Type-C, Fingerprint Reader |
| Rear Interface | 2 × HDMI 2.0, HDMI Out 2.0, Touch 2.0, 2 × USB 2.0, Type-C, RS232, Line Out, SPDIF, Mic In, 2 × RJ45 In, TF Card |
| Expansion Slot | 1 × 80-Pin OPS Slot |
| Product Dimensions | 1959 × 1170 × 84 mm |
| Package Dimensions | 2084 × 1264 × 190 mm |
| VESA Mount | 800 × 600 mm |
| Power Supply | AC 200-240V, 50/60Hz |
| Standby Power | <0.5W |
| Glass | Tempered Glass |
| Frame | Black Aluminum |
| Operating Temperature | 5°C to 35°C |
| Operating Humidity | 20% to 80% RH |
| Included Accessories | Wall Mount, 3m Power Cable, 2 Pens, Remote Control |
| Optional Accessories | Built-In Camera & Microphone Module |
