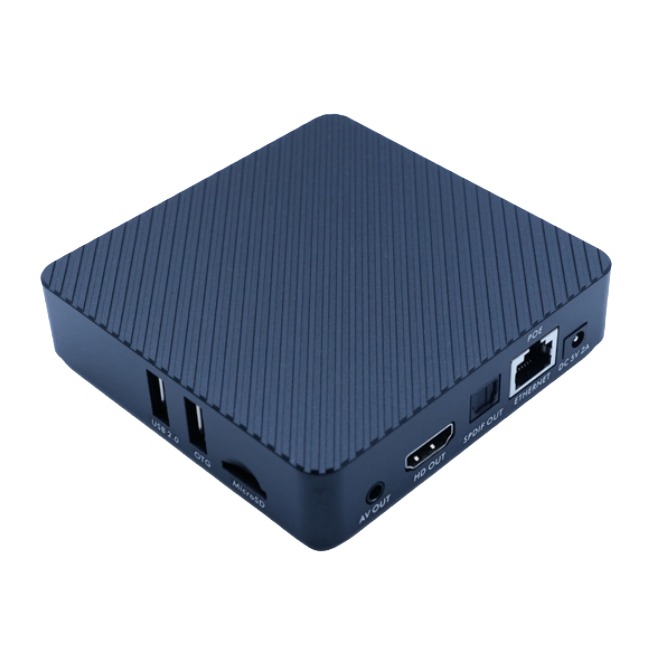

EasySignage EZ-2 4K Digital Signage Media Player
- Preloaded with EasySignage software
- Android 14 operating system
- Amlogic S905X5M processor
- 4GB DDR4 RAM
- 32GB internal storage
- 4K Ultra HD playback
- Power over Ethernet (PoE)
- Fanless commercial design
- Gigabit Ethernet & Wi-Fi
- 24/7 operation capability
FEATURES
Ready-to-Deploy Digital Signage Solution
Comes preloaded with EasySignage software, allowing immediate deployment without complicated configuration.
Powerful Amlogic S905X5M Processor
Features a quad-core ARM Cortex-A55 processor paired with an ARM G310 V2 GPU for smooth content playback and operation.
Android 14 Platform
Runs on the latest Android 14 operating system for improved performance, security, and application compatibility.
4K Ultra HD Playback
Supports crystal-clear 4K content playback with vibrant colors, high detail, and smooth motion rendering.
Commercial-Grade Reliability
Designed for continuous 24/7 operation in demanding business and professional signage environments.
Power over Ethernet Support
Simplifies installations by delivering both power and network connectivity through a single Ethernet cable.
Compact Fanless Design
Silent operation with no moving parts reduces maintenance requirements and improves long-term reliability.
Advanced Video Decoding
Supports AV1, H.265/HEVC, VP9, and AVS2-P2 decoding for efficient playback of modern media formats.
Gigabit Network Connectivity
Provides stable and high-speed network access through Gigabit Ethernet and dual-band Wi-Fi connectivity.
HDMI 2.1 Output
Supports Dynamic HDR, CEC functionality, and modern display compatibility.
Flexible Connectivity Options
Includes USB ports, AV output, RTC support, and multiple networking options.
Professional Digital Signage Performance
Ideal for retail stores, corporate environments, hospitality venues, education facilities, transportation hubs, and digital advertising networks.
| Specification | Details |
|---|---|
| Brand | EasySignage |
| Model | EZ24K |
| Product Type | Digital Signage Media Player |
| Processor | Amlogic S905X5M Quad-Core ARM Cortex-A55 |
| GPU | ARM G310 V2 |
| Operating System | Android 14 |
| RAM | 4GB DDR4 |
| Storage | 32GB ROM |
| Software | EasySignage Preloaded |
| Video Output | 4K Ultra HD |
| Maximum Resolution | Up to 4K × 2K @ 60fps |
| HDMI Version | HDMI 2.1 |
| HDMI Features | CEC, Dynamic HDR |
| Ethernet | 10/100/1000M Gigabit LAN |
| Wireless Connectivity | IEEE 802.11 a/b/g/n/ac Wi‑Fi |
| USB Ports | 2 × USB 2.0 |
| AV Output | 3.5mm AV |
| RTC Support | Yes |
| Power Supply | DC 5V 2A |
| PoE Support | IEEE 802.3af |
| PoE Input Range | 36V - 57V |
| Optional PoE Output | 5V, 13W |
| Video Decoding | AV1, H.265/HEVC, VP9, AVS2-P2 |
| Cooling Design | Fanless |
| Operation | 24/7 Commercial Use |
