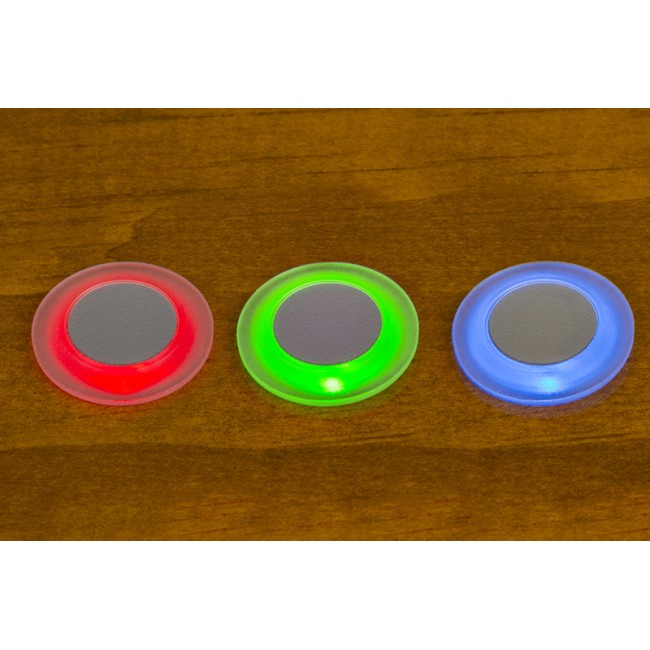

Clockaudio TS 003 Through-table Flush Mount Programmable RGB LED Touch Switch

Providing multiple colours, the TS003 capacitive touch switch provides clear and precise visual operational status. With no moving parts, low-profile mounting and encapsulated electronics, TS003 also provides protection from office contaminants affecting its operation. Comes with modular under desk mount controller for easy install.

• Self-calibrating.
• RGB LED provides multi-colour combination for clear precise visual status of microphone or other devices.
• No moving parts and employing surface mount technology, ensures extreme reliability, longevity and trouble free use.
• Electronic circuitry fully encapsulated to protect operation from spills or other contaminants.
• Terminated with RJ 45 connector and supplied with a touch switch controller (TS-C1) allows connection via CAT 5E patch cable back to CDT-100 or directly to DSP.
• Programmable via DSP to operate in PTT, PTM or latching modes.
• 12V DC operation using regulated power supply or CDT-100.
• Fitted with 200mm cable that connects to TS-C1’s TS-IN.
• RS-IN on TS-C1 provides external switch connectivity.
• Maximum current consumption 70mA.
• Supplied with M15 nut for table fixing.
• Finished in clear polycarbonate.
