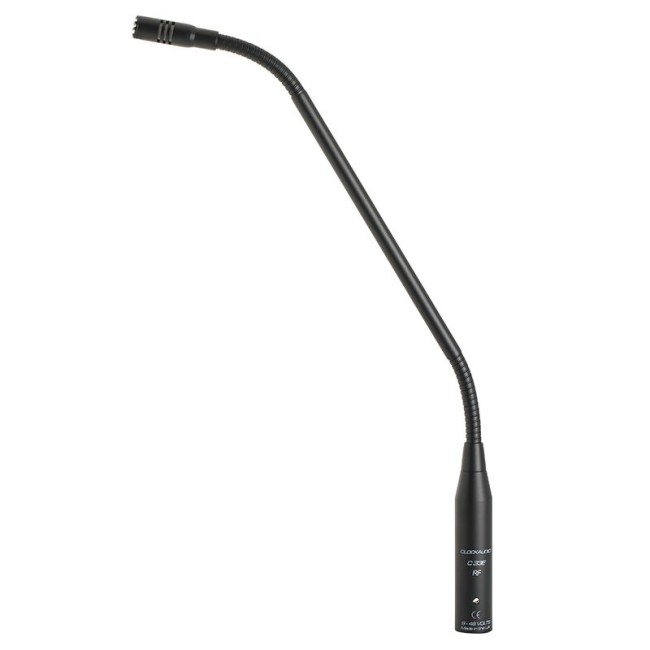

Fully flexible / Semi-Rigid Cardioid Gooseneck Microphone. Terminated with 3 Pin Male XLR.
C33E-RF | |
Length | 180mm (7") / 280mm (11") / 380mm (14.9") / 480mm (18.8") / 580mm (23") / 680mm (27") |
Application | Slimline series cardioid gooseneck microphone designed for superior quality voice reproduction required in boardrooms,conferencing,court rooms and other such venues. The fast and easily detachable design makes this an ideal candidate for security and future upgrading. |
Type | Condenser (Back electret) |
Polar Pattern | Cardioid |
Frequency Response | 50Hz - 18KHz |
Sensitivity | -40dB +/- 3dB at 1 KHz (0dB = 1 V/Pa) |
Impedance | 200 Ohms |
S/N Ratio | 64dB (A) |
Maximum Sound Pressure Level | 125dB 1% THD |
Power Requirements | 9 - 48 volts phantom power |
Termination | 3 Pin Male XLR |
Wiring connections | Pin 1 - Ground Pin 2 - Phase + Pin 3 - Phase - |
Supplied Accessories | W 2 foam windshield |
Disclaimer | Non-RF protected models may be available. Contact clockaudio for availability |
Finish | Satin Black or White. |
Dimensions | DIA 8mm (0.32") |
Weight | 120gms (4.2oz) |
Architects and engineer specifications | The Electret condenser gooseneck microphone has a cardioid polar pattern and slimline profile design. The microphone is constructed from high quality brass construction using an 8mm flexible shaft. The microphone is fitted with a phantom power adaptor accepting 9 to 48 volts DC and has an impedance of 200 Ohms. The Phantom Power Adaptor includes filters which will eliminate all cellular frequencies (GSM/2G, 3G, 4G & 5G) and is terminated with a male 3 pin XLR. Frequency response 50 Hz - 18 KHz +/-3dB, sensitivity -40dB +/- 3dB @ 1KHz (0dB =1V/Pa), total harmonic distortion (THD) at an operating level of 125dB less than 1%. Shaft diameter: 8mm. Finish: Satin Black or White. |
