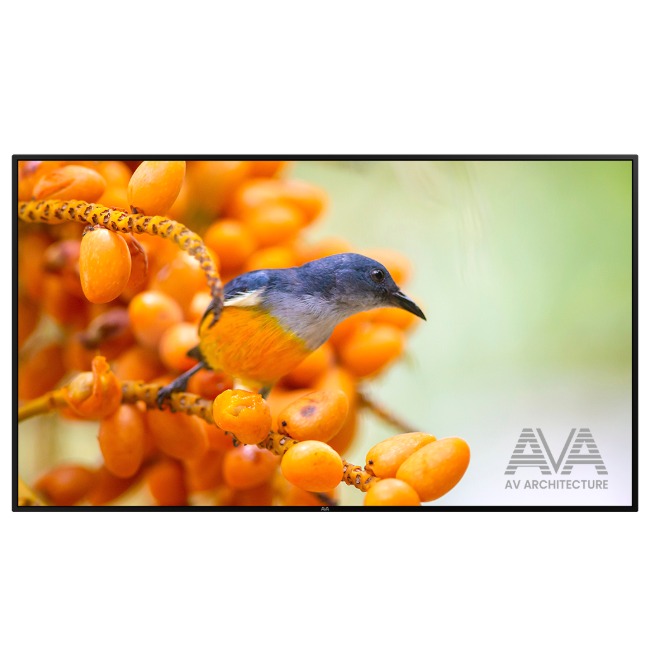

AVA DX9800 98-Inch 4K UHD Commercial Digital Signage Display
- The AVA DX9800 is a 98-inch commercial-grade 4K UHD digital signage display engineered for demanding professional environments. Featuring a stunning 3840 × 2160 resolution, 500 nits brightness, Android 11 operating system, powerful quad-core processor, an
- Brand:
- Product Code:DX9800
- 98-inch 4K UHD display
- 3840 × 2160 resolution
- Android 11 operating system
- ARM Cortex-A55 quad-core processor
- 4GB RAM and 32GB storage
- 3.5mm anti-glare tempered glass
- Ultra-slim bezel design
- 24/7 continuous operation
- Split-screen display functionality
- Wi-Fi, LAN, and Bluetooth connectivity
FEATURES
98-Inch 4K UHD Display
Delivers stunning visual performance with a massive 98-inch screen and crystal-clear 3840 × 2160 Ultra HD resolution.
Commercial-Grade Brightness
500 cd/m² brightness ensures vibrant and impactful content visibility in professional environments.
3.5mm Anti-Glare Tempered Glass
Reduces reflections while enhancing screen protection and viewing comfort.
Android 11 Operating System
Provides a stable and intelligent platform for advanced content management and media playback.
Quad-Core Cortex-A55 Processor
Ensures smooth system performance and reliable handling of multimedia-rich content.
4GB RAM & 32GB Storage
Offers sufficient processing power and storage capacity for commercial signage applications.
Ultra-Slim Bezel Design
Creates an immersive viewing experience with a sleek and professional appearance.
24/7 Continuous Operation
Designed for round-the-clock commercial use in demanding digital signage environments.
Split-Screen Display Mode
Supports simultaneous display of multiple content sources for enhanced communication flexibility.
USB Auto-Start Playback
Automatically launches content playback from USB devices for simplified operation.
LAN & Network Synchronization
Supports synchronized content management and playback across multiple displays.
Comprehensive Connectivity
Features HDMI input/output, USB ports, LAN, Bluetooth, OPS expansion, and additional professional interfaces
| Specification | Details |
|---|---|
| Model | DX9800 |
| Brand | AVA |
| Display Size | 98 Inches |
| Resolution | 3840 × 2160 (4K UHD) |
| Display Panel | A Grade Panel with 3.5mm Anti-Glare Tempered Glass |
| Brightness | 500 cd/m² |
| Contrast Ratio | 1200:1 |
| Response Time | 8ms |
| Viewing Angle | 178° Horizontal / Vertical |
| CPU | ARM Cortex-A55 Quad-Core, 1.9GHz |
| Memory | 4GB RAM |
| Storage | 32GB |
| Operating System | Android 11 |
| Audio Output | 2 × 15W Built-In Speakers |
| Connectivity | Wi-Fi, LAN, Bluetooth |
| HDMI | HDMI Input & Output |
| USB Ports | USB 2.0 ×2, USB 3.0 |
| Additional Ports | TF Card, RJ45, VGA, Audio, RS232 |
| OPS Slot | Standard OPS Interface |
| Playback Features | USB Auto-Start, Split Screen, Scheduled Playback, LAN Sync |
| Power Consumption | Max 580W |
| Standby Power | ≤0.5W |
| Dimensions | 2200 × 1281 × 80 mm |
| Net Weight | 80 kg |
| Gross Weight | 94 kg |
| Mounting Standard | VESA 1000 × 600 mm |
| Working Time | 24/7 Continuous Operation |
