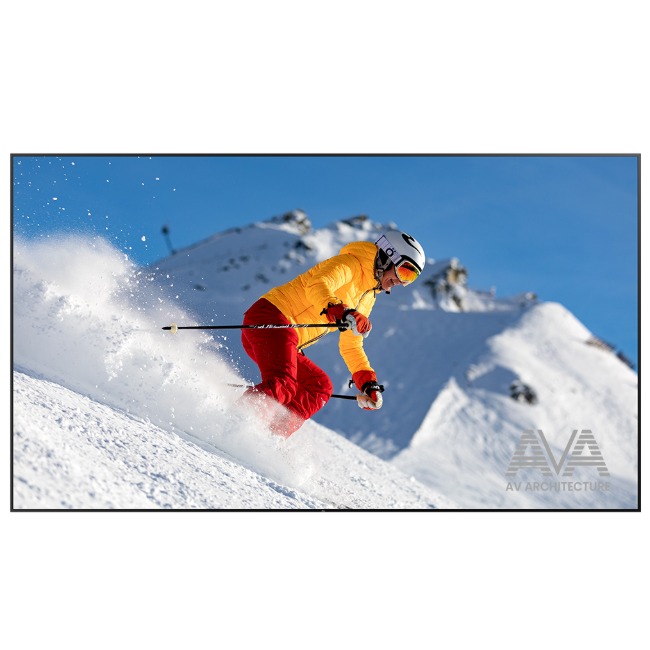

AVA DX11500 115-Inch 4K UHD Commercial Digital Signage Display
- The AVA DX11500 is a 115-inch 4K UHD commercial digital signage display featuring Android 14, an Amlogic 311D2 processor, 8GB RAM, 128GB storage, Wi-Fi 6 connectivity, and OPS support for corporate, retail, control room, and public display applications
- Brand:
- Product Code:DX11500
- 115-inch 4K UHD display
- Android 14 operating system
- Amlogic 311D2 processor
- 8GB RAM and 128GB storage
- Wi-Fi 6 and Bluetooth connectivity
- OPS slot support
- 5000:1 contrast ratio
- 24/7 commercial operation
- Ultra-wide 178° viewing angle
- Comprehensive connectivity options
FEATURES
115-Inch 4K UHD Display
Delivers exceptional visual impact with a massive 115-inch screen and stunning 3840 × 2160 Ultra HD resolution.
High Contrast Performance
5000:1 contrast ratio provides deeper blacks, enhanced detail, and superior image clarity.
Android 14 Operating System
Offers advanced performance, enhanced security, and intelligent content management capabilities.
Amlogic 311D2 Processor
Powered by a high-performance processor featuring Cortex-A73 and Cortex-A53 cores for smooth multimedia operation.
8GB RAM & 128GB Storage
Delivers fast performance and ample storage capacity for demanding commercial signage applications.
Wi-Fi 6 Connectivity
Supports high-speed wireless networking for reliable content distribution and remote management.
OPS Expansion Support
Compatible with OPS modules for enhanced flexibility and seamless system integration.
Ultra-Wide Viewing Angle
178° viewing angles ensure consistent image quality and visibility across large viewing areas.
24/7 Commercial Operation
Designed for continuous professional use in demanding commercial environments.
Comprehensive Connectivity
Includes HDMI, USB, Type-C, DisplayPort, VGA, LAN, RS232, audio outputs, and additional professional interfaces.
Premium Aluminum Frame Construction
Features an aluminum frame, metal shell, and composite panel construction for durability and professional aesthetics.
Ideal for Large-Scale Applications
Perfect for corporate lobbies, command centers, auditoriums, retail environments, and public venues
| Specification | Details |
|---|---|
| Model | DX11500 |
| Brand | AVA |
| Display Size | 115 Inches |
| Resolution | 3840 × 2160 (4K UHD) |
| Panel Type | LED, A Grade |
| Brightness | 300 cd/m² |
| Contrast Ratio | 5000:1 |
| Color Saturation | 69% |
| Display Colors | 1.07 Billion |
| Viewing Angle | 178° (H/V) |
| Refresh Rate | 60Hz |
| Lifespan | ≥ 50,000 Hours |
| Processor | Amlogic 311D2 (Quad ARM Cortex-A73 + A53) |
| Graphics | Mali-G52 MP8 (8EE) |
| RAM | 8GB |
| Storage | 128GB |
| Operating System | Android 14 |
| Speakers | 2 × 10W Built-In |
| Wireless Connectivity | Wi-Fi 6 (2.4GHz/5GHz), Bluetooth |
| OPS Support | Yes |
| Input Ports | HDMI ×2, USB 3.0 ×2, USB 2.0 ×1, Type-C, DP, VGA, RS232, RJ45 |
| Output Ports | HDMI Out, Audio Out, Optical Out, RJ45 Out, Touch Out ×2 |
| Power Supply | AC 100-240V |
| Power Consumption | ≤850W |
| Standby Power | <0.5W |
| Product Dimensions | 2572.1 × 1448.5 × 105.9 mm |
| Package Dimensions | 2777.4 × 300 × 1710 mm |
| Net Weight | 78.5 kg |
| Gross Weight | 119.3 kg |
| Frame Material | Aluminum Frame + Metal Shell + Composite Panel |
| Mounting Standard | VESA 1000 × 400 mm |
| OSD Languages | English, Chinese, and Multiple Languages |
| Included Accessories | Remote Control, Power Cord, User Manual, Quick Start Guide, Batteries, Stand |
