This model of the U series at 121 cm in height boasts an extensive history and deep-rooted popularity—and delivers outstanding expressive musical performance.
| U1 | ||
|---|---|---|
| Cabinet | Color | Polished Ebony *Availability of other finishes depends on model and is subject to regional variation. Please consult your Yamaha dealer for further information |
| Finish | Polished | |
| Dimensions | Width | 153cm(60 1/4") |
| Height | 121cm(47 3/4") | |
| Depth | 62cm(24 1/2") | |
| Weight | Weight | 228kg(503lbs) |
| Keyboard | Number of Keys | 88 |
| Key Surfaces - White | Acrylic Resin | |
| Key Surfaces - Black | Phenolic Resin | |
| Pedal | Type | Damper,Muffler,Soft |
| Key Cover | Soft-Close Fallboard | Yes |
113cm Traditional Style Cabinet, Polished Ebony with Bench
109cm Modern Design Polished White w/ Bench.
| JU109 | ||
|---|---|---|
| Cabinet | Color | Polished Ebony *Availability of other finishes depends on model and is subject to regional variation. Please consult your Yamaha dealer for further information. |
| Finish | Polished | |
| Dimensions | Width | 149cm(58 3/4") |
| Height | 109cm(43") | |
| Depth | 54cm(21 1/4") | |
| Weight | Weight | 197kg(434lbs) |
| Keyboard | Number of Keys | 88 |
A fine example of natural beauty, the JU109 features an exquisite combination of Yamaha craftsmanship and technology that make it delightfully affordable and a joy to play. TransAcoustic™ functionality has been added to this JU109.
| JU109 TC3 | ||
|---|---|---|
| Dimensions | Width | 149 cm (58 3/4") |
| Height | 109 cm (43") | |
| Depth | 54 cm (21 1/4") | |
| Weight | Weight | 202 kg (445 lb) |
| Keyboard | Key Surfaces - White | Acrylic resin |
| Key Surfaces - Black | Phenolic resin | |
| Hammer | Type | JU/JX Series Special |
| Pedal | Type | Damper/Silencing pedal/Soft |
| Caster | Type | - |
| Key Cover | Soft-Close Fallboard | - |
| Key Sensors | Non-contact continuous detection electromagnetic inductive sensor | |
| Hammer Sensors | - | |
| Damper Pedal | Continuous detection sensor | |
| Sostenuto Pedal | - | |
| Soft/Shift Pedal | On/Off detection sensor | |
| Mechanism | Hammer shank stopper operated by center pedal | |
| Action | - | |
| Mechanism | TransAcoustic™ technology | |
| Tone Generation | Piano Sound | Yamaha CFX, Bösendorfer Imperial |
| Binaural Sampling | Yes (Yamaha CFX,Bösendorfer Imperial) | |
| VRM | Yes | |
| Grand Expression Modeling | Yes | |
| Key-off Samples | Yes | |
| Smooth Release | Yes | |
| Polyphony (max.) | 256 | |
| Preset | Number of Voices | 12 |
| Types | Reverb | Yes |
| Brilliance | Yes | |
| Stereophonic Optimizer | Yes (piano Voices other than “CFX Grand” and “Bösendorfer”) | |
| Preset | Number of Preset Songs | 12 Voice Demo Songs, 50 Classics |
| Recording | Number of Songs | 10 |
| Number of Tracks | 2 | |
| Data Capacity(max.) | approx. 500 KB | |
| Format | Playback | SMF (Format 0, Format 1) |
| Recording | SMF (Format 0) | |
| Recording Time (max.) | 80 minutes/Song | |
| Format | Playback | WAV (44.1 kHz, 16 bit, stereo) |
| Recording | WAV (44.1 kHz, 16 bit, stereo) | |
| Rhythm Patterns | 20 | |
| Overall Controls | Metronome | Yes |
| Tempo Range | 5 – 500 | |
| Transpose | -12 – 0 – +12 | |
| Tuning | 414.8 – 440.0 – 466.8 Hz (approx. 0.2 Hz increments) | |
| Control Interface | Display | 7-Seg |
| Bluetooth | Yes (Audio/MIDI) *May not have this functionality depending on your area. Check with your Yamaha dealer. | |
| Storage | Internal Memory | approx. 1.3 MB |
| External Drives | USB flash drive | |
| Connectivity | Headphones | Stereo mini jack (x2) |
| MIDI | - | |
| AUX IN | Stereo mini jack | |
| USB TO DEVICE | Yes | |
| USB TO HOST | Yes | |
| AC Adaptor | PA-500 (or an equivalent recommended by Yamaha) | |
| Power Consumption | 17 W (When using PA-500 AC adaptor) | |
| Auto Power Off | Yes | |
| Included Accessories | AC adaptor*, power cord*,Headphones, headphone hanger, attachment screws for headphone hanger, Owner’s Manual. *May not be included depending on your area. Check with your Yamaha dealer. | |
| Separately Sold Accessories | USB wireless LAN adaptor (UD-WL01) *May not be available depending on your area. | |
109cm Modern Design Polished Ebony w/ Bench
| JU109 | ||
|---|---|---|
| Cabinet | Color | Polished Ebony *Availability of other finishes depends on model and is subject to regional variation. Please consult your Yamaha dealer for further information. |
| Finish | Polished | |
| Dimensions | Width | 149cm(58 3/4") |
| Height | 109cm(43") | |
| Depth | 54cm(21 1/4") | |
| Weight | Weight | 197kg(434lbs) |
| Keyboard | Number of Keys | 88 |
A fine example of natural beauty, the JU109 features an exquisite combination of Yamaha craftsmanship and technology that make it delightfully affordable and a joy to play. TransAcoustic™ functionality has been added to this JU109.
| JU109 TC3 | ||
|---|---|---|
| Dimensions | Width | 149 cm (58 3/4") |
| Height | 109 cm (43") | |
| Depth | 54 cm (21 1/4") | |
| Weight | Weight | 202 kg (445 lb) |
| Keyboard | Key Surfaces - White | Acrylic resin |
| Key Surfaces - Black | Phenolic resin | |
| Hammer | Type | JU/JX Series Special |
| Pedal | Type | Damper/Silencing pedal/Soft |
| Caster | Type | - |
| Key Cover | Soft-Close Fallboard | - |
| Key Sensors | Non-contact continuous detection electromagnetic inductive sensor | |
| Hammer Sensors | - | |
| Damper Pedal | Continuous detection sensor | |
| Sostenuto Pedal | - | |
| Soft/Shift Pedal | On/Off detection sensor | |
| Mechanism | Hammer shank stopper operated by center pedal | |
| Action | - | |
| Mechanism | TransAcoustic™ technology | |
| Tone Generation | Piano Sound | Yamaha CFX, Bösendorfer Imperial |
| Binaural Sampling | Yes (Yamaha CFX,Bösendorfer Imperial) | |
| VRM | Yes | |
| Grand Expression Modeling | Yes | |
| Key-off Samples | Yes | |
| Smooth Release | Yes | |
| Polyphony (max.) | 256 | |
| Preset | Number of Voices | 12 |
| Types | Reverb | Yes |
| Brilliance | Yes | |
| Stereophonic Optimizer | Yes (piano Voices other than “CFX Grand” and “Bösendorfer”) | |
| Preset | Number of Preset Songs | 12 Voice Demo Songs, 50 Classics |
| Recording | Number of Songs | 10 |
| Number of Tracks | 2 | |
| Data Capacity(max.) | approx. 500 KB | |
| Format | Playback | SMF (Format 0, Format 1) |
| Recording | SMF (Format 0) | |
| Recording Time (max.) | 80 minutes/Song | |
| Format | Playback | WAV (44.1 kHz, 16 bit, stereo) |
| Recording | WAV (44.1 kHz, 16 bit, stereo) | |
| Rhythm Patterns | 20 | |
| Overall Controls | Metronome | Yes |
| Tempo Range | 5 – 500 | |
| Transpose | -12 – 0 – +12 | |
| Tuning | 414.8 – 440.0 – 466.8 Hz (approx. 0.2 Hz increments) | |
| Control Interface | Display | 7-Seg |
| Bluetooth | Yes (Audio/MIDI) *May not have this functionality depending on your area. Check with your Yamaha dealer. | |
| Storage | Internal Memory | approx. 1.3 MB |
| External Drives | USB flash drive | |
| Connectivity | Headphones | Stereo mini jack (x2) |
| MIDI | - | |
| AUX IN | Stereo mini jack | |
| USB TO DEVICE | Yes | |
| USB TO HOST | Yes | |
| AC Adaptor | PA-500 (or an equivalent recommended by Yamaha) | |
| Power Consumption | 17 W (When using PA-500 AC adaptor) | |
| Auto Power Off | Yes | |
| Included Accessories | AC adaptor*, power cord*,Headphones, headphone hanger, attachment screws for headphone hanger, Owner’s Manual. *May not be included depending on your area. Check with your Yamaha dealer. | |
| Separately Sold Accessories | USB wireless LAN adaptor (UD-WL01) *May not be available depending on your area. | |
A perennial favorite among discerning pianists, the Yamaha U1 offers outstanding musical performance, setting the standards by which many other upright pianos are measured. TransAcoustic™ functionality has been added to this U1.
| U1 TA3 | ||
|---|---|---|
| Dimensions | Width | 153 cm (60 1/4") |
| Height | 121 cm (47 3/4") | |
| Depth | 62 cm (24 1/2") | |
| Weight | Weight | 238 kg (524 lb) |
| Keyboard | Key Surfaces - White | Acrylic resin |
| Key Surfaces - Black | Phenolic resin | |
| Hammer | Type | U Series Special |
| Pedal | Type | Damper/Silencing pedal/Soft |
| Caster | Type | Single Caster |
| Lid | Prop Safety Stop | - |
| Key Cover | Lid/Fallboard Locks | Yes |
| Soft-Close Fallboard | Yes | |
| Key Sensors | Non-contact continuous detection electromagnetic inductive sensor | |
| Hammer Sensors | - | |
| Damper Pedal | Continuous detection sensor | |
| Sostenuto Pedal | - | |
| Soft/Shift Pedal | On/Off detection sensor | |
| Mechanism | Hammer shank stopper operated by center pedal | |
| Action | - | |
| Mechanism | TransAcoustic™ technology | |
| Tone Generation | Piano Sound | Yamaha CFX, Bösendorfer Imperial |
| Forte Piano | Yes | |
| Binaural Sampling | Yes (Yamaha CFX, Bösendorfer Imperial) | |
| VRM | Yes | |
| Grand Expression Modeling | Yes | |
| Key-off Samples | Yes | |
| Smooth Release | Yes | |
| Polyphony (max.) | 256 | |
| Preset | Number of Voices | 25 |
| Voices for Song Playback | 480 XG Voices + 12 Drum/SFX Kits | |
| Types | Reverb | Yes |
| Brilliance | Yes | |
| Stereophonic Optimizer | Yes (piano Voices other than “CFX Grand” and “Bösendorfer”) | |
| Preset | Number of Preset Songs | 25 Voice Demo Songs, 50 Classics |
| Recording | Number of Songs | 10 |
| Number of Tracks | 2 | |
| Data Capacity(max.) | approx. 500 KB/Song | |
| Format | Playback | SMF (Format 0, Format 1) |
| Recording | SMF (Format 0) | |
| Recording Time (max.) | 80 minutes/Song | |
| Format | Playback | WAV (44.1 kHz, 16 bit, stereo) |
| Recording | WAV (44.1 kHz, 16 bit, stereo) | |
| Rhythm Patterns | 20 | |
| Overall Controls | Metronome | Yes |
| Tempo Range | 5 – 500 | |
| Transpose | -12 – 0 – +12 | |
| Tuning | 414.8 – 440.0 – 466.8 Hz (approx. 0.2 Hz increments) | |
| Control Interface | Display | 7-Seg |
| Bluetooth | Yes (Audio/MIDI) *May not have this functionality depending on your area. Check with your Yamaha dealer. | |
| Storage | Internal Memory | approx. 1.3 MB |
| External Drives | USB flash drive | |
| Connectivity | Headphones | Stereo mini jack (x2) |
| MIDI | IN/OUT | |
| AUX IN | Stereo mini jack | |
| AUX OUT | [L/L+R][R] (Standard phone jack) | |
| USB TO DEVICE | Yes | |
| USB TO HOST | Yes | |
| AC Adaptor | PA-500 (or an equivalent recommended by Yamaha) | |
| Power Consumption | 26 W (When using PA-500 AC adaptor) | |
| Auto Power Off | Yes | |
| Included Accessories | AC adaptor*, power cord*, headphones, headphone hanger, attachment screws for headphone hanger, “50 Classical Music Masterpieces” music book, Owner’s Manual *May not be included depending on your area. Check with your Yamaha dealer. | |
| Separately Sold Accessories | USB wireless LAN adaptor (UD-WL01) *May not be available depending on your area. | |
This 121 cm model was designed based on the highly acclaimed U series uprights, and augments the excellent tonal characteristics of that series with exterior refinements (including a well-polished finish) that help maintain the beauty of the instrument ov
| U1J | ||
|---|---|---|
| Cabinet | Color | Polished Ebony *Availability of other finishes depends on model and is subject to regional variation. Please consult your Yamaha dealer for further information. |
| Finish | Polished | |
| Dimensions | Width | 152cm(60") |
| Height | 121cm(47 3/4") | |
| Depth | 62cm(24 1/2") | |
| Weight | Weight | 246kg(542Ibs) |
| Keyboard | Number of Keys | 88 |
| Key Surfaces - White | Acrylic Resin | |
| Key Surfaces - Black | Phenolic Resin | |
| Pedal | Type | Damper,Muffler,Soft |
| Key Cover | Soft-Close Fallboard | Yes |
This 121 cm model was designed based on the highly acclaimed U series uprights, and augments the excellent tonal characteristics of that series with exterior refinements (including a well-polished finish).
| U1J PWHC | ||
|---|---|---|
| Cabinet | Color | Polished White |
| Finish | Polished | |
| Dimensions | Width | 152cm(60") |
| Height | 121cm(47 3/4") | |
| Depth | 62cm(24 1/2") | |
| Weight | Weight | 246kg(542Ibs) |
| Keyboard | Number of Keys | 88 |
| Key Surfaces - White | Acrylic Resin | |
| Key Surfaces - Black | Phenolic Resin | |
| Pedal | Type | Damper,Muffler,Soft |
| Key Cover | Soft-Close Fallboard | Yes |
Features convenient volume control, yet maintains gorgeous acoustic piano resonance. Recommended for those who want to enjoy muting functions on a standard Yamaha piano.
| JU109 SC3 | ||
|---|---|---|
| Dimensions | Width | 149 cm (58 3/4") |
| Height | 109 cm (43") | |
| Depth | 54 cm (21 1/4") | |
| Weight | Weight | 201 kg (453 lb) |
| Keyboard | Key Surfaces - White | Acrylic resin |
| Key Surfaces - Black | Phenolic resin | |
| Hammer | Type | JU/JX Series Special |
| Pedal | Type | Damper/Silencing pedal/Soft |
| Caster | Type | - |
| Lid | Prop Safety Stop | - |
| Key Cover | Lid/Fallboard Locks | - |
| Soft-Close Fallboard | - | |
| Key Sensors | Non-contact continuous detection electromagnetic inductive sensor | |
| Damper Pedal | Continuous detection sensor | |
| Sostenuto Pedal | - | |
| Soft/Shift Pedal | On/Off detection sensor | |
| Mechanism | Hammer shank stopper operated by center pedal | |
| Action | - | |
| Tone Generation | Piano Sound | Yamaha CFX, Bösendorfer Imperial |
| Binaural Sampling | Yes (Yamaha CFX, Bösendorfer Imperial) | |
| VRM | Yes | |
| Grand Expression Modeling | Yes | |
| Key-off Samples | Yes | |
| Smooth Release | Yes | |
| Polyphony (max.) | 256 | |
| Preset | Number of Voices | 12 |
| Types | Reverb | Yes |
| Brilliance | Yes | |
| Stereophonic Optimizer | Yes (piano Voices other than “CFX Grand” and “Bösendorfer”) | |
| Preset | Number of Preset Songs | 12 Voice Demo Songs, 50 Classics |
| Recording | Number of Songs | 10 |
| Number of Tracks | 2 | |
| Data Capacity(max.) | approx. 500 KB | |
| Format | Playback | SMF (Format 0, Format 1) |
| Recording | SMF (Format 0) | |
| Recording Time (max.) | 80 minutes/Song | |
| Format | Playback | WAV (44.1 kHz, 16 bit, stereo) |
| Recording | WAV (44.1 kHz, 16 bit, stereo) | |
| Rhythm Patterns | 20 | |
| Overall Controls | Metronome | Yes |
| Tempo Range | 5 – 500 | |
| Transpose | -12 – 0 – +12 | |
| Tuning | 414.8 – 440.0 – 466.8 Hz (approx. 0.2 Hz increments) | |
| Control Interface | Display | 7-Seg |
| Bluetooth | Yes (Audio/MIDI) *May not have this functionality depending on your area. Check with your Yamaha dealer. | |
| Storage | Internal Memory | approx. 1.3 MB |
| External Drives | USB flash drive | |
| Connectivity | Headphones | Stereo mini jack (×2) |
| MIDI | - | |
| AUX IN | Stereo mini jack | |
| USB TO DEVICE | Yes | |
| USB TO HOST | Yes | |
| AC Adaptor | PA-300C (or an equivalent recommended by Yamaha) | |
| Power Consumption | 8W (When using PA-300C AC adaptor) | |
| Auto Power Off | Yes | |
| Included Accessories | AC adaptor*, power cord*, Headphones, headphone hanger, attachment screws for headphone hanger, Owner’s Manual. *May not be included depending on your area. Check with your Yamaha dealer. | |
| Separately Sold Accessories | USB wireless LAN adaptor (UD-WL01) *May not be available depending on your area. | |
The smallest model in the series with a height of 109 cm, with an emphasis on compactness, yet exquisitely combining fine Yamaha piano craftsmanship and technology.
The U1J was designed based on Yamaha's acclaimed U series upright acoustic piano line, it features a well-polished finish that maintains the beauty of the instrument over a lifetime. TransAcoustic™ functionality has been added to this U1J.
| U1J TC3 | ||
|---|---|---|
| Dimensions | Width | 152 cm (60") |
| Height | 121 cm (47 3/4") | |
| Depth | 62 cm (24 1/2") | |
| Weight | Weight | 251 kg (553 lb) |
| Keyboard | Key Surfaces - White | Acrylic resin |
| Key Surfaces - Black | Phenolic resin | |
| Hammer | Type | U1J Special |
| Pedal | Type | Damper/Silencing pedal/Soft |
| Caster | Type | Single caster |
| Key Cover | Soft-Close Fallboard | Yes |
| Key Sensors | Non-contact continuous detection electromagnetic inductive sensor | |
| Hammer Sensors | - | |
| Damper Pedal | Continuous detection sensor | |
| Sostenuto Pedal | - | |
| Soft/Shift Pedal | On/Off detection sensor | |
| Mechanism | Hammer shank stopper operated by center pedal | |
| Action | - | |
| Mechanism | TransAcoustic™ technology | |
| Tone Generation | Piano Sound | Yamaha CFX, Bösendorfer Imperial |
| Binaural Sampling | Yes (Yamaha CFX,Bösendorfer Imperial) | |
| VRM | Yes | |
| Grand Expression Modeling | Yes | |
| Key-off Samples | Yes | |
| Smooth Release | Yes | |
| Polyphony (max.) | 256 | |
| Preset | Number of Voices | 12 |
| Types | Reverb | Yes |
| Brilliance | Yes | |
| Stereophonic Optimizer | Yes (piano Voices other than “CFX Grand” and “Bösendorfer”) | |
| Preset | Number of Preset Songs | 12 Voice Demo Songs, 50 Classics |
| Recording | Number of Songs | 10 |
| Number of Tracks | 2 | |
| Data Capacity(max.) | approx. 500 KB | |
| Format | Playback | SMF (Format 0, Format 1) |
| Recording | SMF (Format 0) | |
| Recording Time (max.) | 80 minutes/Song | |
| Format | Playback | WAV (44.1 kHz, 16 bit, stereo) |
| Recording | WAV (44.1 kHz, 16 bit, stereo) | |
| Rhythm Patterns | 20 | |
| Overall Controls | Metronome | Yes |
| Tempo Range | 5 – 500 | |
| Transpose | -12 – 0 – +12 | |
| Tuning | 414.8 – 440.0 – 466.8 Hz (approx. 0.2 Hz increments) | |
| Control Interface | Display | 7-Seg |
| Bluetooth | Yes (Audio/MIDI) *May not have this functionality depending on your area. Check with your Yamaha dealer. | |
| Storage | Internal Memory | approx. 1.3 MB |
| External Drives | USB flash drive | |
| Connectivity | Headphones | Stereo mini jack (x2) |
| MIDI | - | |
| AUX IN | Stereo mini jack | |
| USB TO DEVICE | Yes | |
| USB TO HOST | Yes | |
| AC Adaptor | PA-500 (or an equivalent recommended by Yamaha) | |
| Power Consumption | 17 W (When using PA-500 AC adaptor) | |
| Auto Power Off | Yes | |
| Included Accessories | AC adaptor*, power cord*,Headphones, headphone hanger, attachment screws for headphone hanger, Owner’s Manual. *May not be included depending on your area. Check with your Yamaha dealer. | |
| Separately Sold Accessories | USB wireless LAN adaptor (UD-WL01) *May not be available depending on your area. | |
This model of the U series at 121 cm in height boasts an extensive history and deep-rooted popularity—and delivers outstanding expressive musical performance.
| U1 | ||
|---|---|---|
| Cabinet | Color | Polished Ebony *Availability of other finishes depends on model and is subject to regional variation. Please consult your Yamaha dealer for further information |
| Finish | Polished | |
| Dimensions | Width | 153cm(60 1/4") |
| Height | 121cm(47 3/4") | |
| Depth | 62cm(24 1/2") | |
| Weight | Weight | 228kg(503lbs) |
| Keyboard | Number of Keys | 88 |
| Key Surfaces - White | Acrylic Resin | |
| Key Surfaces - Black | Phenolic Resin | |
| Pedal | Type | Damper,Muffler,Soft |
| Key Cover | Soft-Close Fallboard | Yes |
110cm Natural Finish Series Satin Dark Walnut
| M2 | ||
|---|---|---|
| Cabinet | Color | Satin Mahogany / Satin Dark Walnut / Satin Black Walnut *Availability of other finishes depends on model and is subject to regional variation. Please consult your Yamaha dealer for further information. |
| Dimensions | Width | 150cm(59") |
| Height | 110cm(43 1/4") | |
| Depth | 59cm(23 1/4") | |
| Weight | Weight | 206kg(454lbs) |
| Keyboard | Number of Keys | 88 |
| Caster | Type | Double casters |
| Key Cover | Soft-Close Fallboard | Yes |

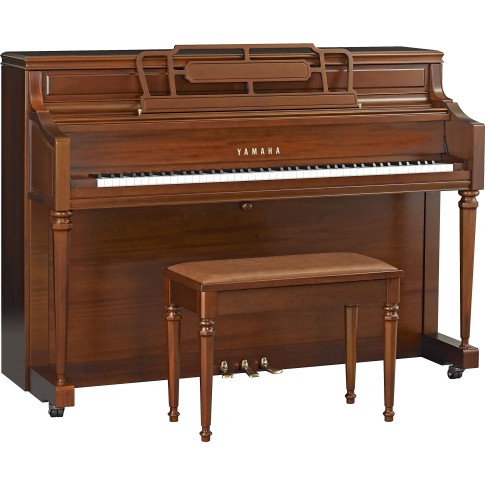

118cm Furniture Style with Elegant Leg Curves Design with Bench / Satin Dark Walnut
| M3 | ||
|---|---|---|
| Cabinet | Color | Satin Mahogany / Satin Dark Walnut / Satin Black Walnut *Availability of other finishes depends on model and is subject to regional variation. Please consult your Yamaha dealer for further information. |
| Dimensions | Width | 156cm(61 1/2") |
| Height | 118cm(46 1/2") | |
| Depth | 64cm(25 1/4") | |
| Weight | Weight | 235kg(518lbs) |
| Keyboard | Number of Keys | 88 |
| Caster | Type | Double casters |
| Key Cover | Soft-Close Fallboard | Yes |
This model of the U series at 121 cm in height boasts an extensive history and deep-rooted popularity—and delivers outstanding expressive musical performance.
| U1 | ||
|---|---|---|
| Cabinet | Color | Polished Ebony *Availability of other finishes depends on model and is subject to regional variation. Please consult your Yamaha dealer for further information |
| Finish | Polished | |
| Dimensions | Width | 153cm(60 1/4") |
| Height | 121cm(47 3/4") | |
| Depth | 62cm(24 1/2") | |
| Weight | Weight | 228kg(503lbs) |
| Keyboard | Number of Keys | 88 |
| Key Surfaces - White | Acrylic Resin | |
| Key Surfaces - Black | Phenolic Resin | |
| Pedal | Type | Damper,Muffler,Soft |
| Key Cover | Soft-Close Fallboard | Yes |
109cm Modern Design Polished Mahogany w/ Bench.
| JU109 | ||
|---|---|---|
| Cabinet | Color | Polished Ebony *Availability of other finishes depends on model and is subject to regional variation. Please consult your Yamaha dealer for further information. |
| Finish | Polished | |
| Dimensions | Width | 149cm(58 3/4") |
| Height | 109cm(43") | |
| Depth | 54cm(21 1/4") | |
| Weight | Weight | 197kg(434lbs) |
| Keyboard | Number of Keys | 88 |
109cm Modern Design Polished Walnut w/ Bench
| JU109 | ||
|---|---|---|
| Cabinet | Color | Polished Ebony *Availability of other finishes depends on model and is subject to regional variation. Please consult your Yamaha dealer for further information. |
| Finish | Polished | |
| Dimensions | Width | 149cm(58 3/4") |
| Height | 109cm(43") | |
| Depth | 54cm(21 1/4") | |
| Weight | Weight | 197kg(434lbs) |
| Keyboard | Number of Keys | 88 |
109cm Silent Piano, 256-note polyphony, 10 voices incl. Yamaha CFX and Boesendorfer Imperial piano voices, VRM, Polished Ebony, with Bench.
| JU109 SC2 | ||
|---|---|---|
| Dimensions | Width | 149 cm (58 3/4") |
| Height | 109 cm (43") | |
| Depth | 54 cm (21 1/4") | |
| Weight | Weight | 201 kg (453 lb) |
| Keyboard | Key Surfaces - White | Acrylic resin |
| Key Surfaces - Black | Phenolic resin | |
| Hammer | Type | JU/JX Series Special |
| Pedal | Type | Damper/Silencing pedal/Soft |
| Caster | Type | - |
| Lid | Prop Safety Stop | - |
| Key Cover | Lid/Fallboard Locks | - |
| Soft-Close Fallboard | - | |
| Key Sensors | Non-contact continuous detection optical sensor | |
| Damper Pedal | Continuous detection sensor | |
| Sostenuto Pedal | - | |
| Soft/Shift Pedal | On/Off detection sensor | |
| Mechanism | Hammer shank stopper operated by center pedal | |
| Action | - | |
| Tone Generation | Piano Sound | Yamaha CFX, Bösendorfer Imperial |
| Binaural Sampling | Yes (CFX Grand Voice only) | |
| VRM | Yes | |
| Key-off Samples | Yes | |
| Smooth Release | Yes | |
| Polyphony (max.) | 256 | |
| Preset | Number of Voices | 10 |
| Types | Reverb | Yes |
| Brilliance | Yes | |
| Stereophonic Optimizer | Yes (Piano Voices other than CFX Grand) | |
| Preset | Number of Preset Songs | 10 Voice Demo Songs, 50 Classics |
| Recording | Number of Songs | 1 |
| Data Capacity | approx. 550 KB | |
| Format | Playback | SMF (Format 0, Format 1) |
| Recording | SMF (Format 0) | |
| Recording Time (max.) | 80 minutes/Song | |
| Format | Playback | WAV (44.1 kHz, 16 bit, stereo) |
| Recording | WAV (44.1 kHz, 16 bit, stereo) | |
| Overall Controls | Metronome | Yes |
| Tempo Range | 5 – 500 | |
| Transpose | -6 – 0 – +6 | |
| Tuning | 414.8 – 440.0 – 466.8 Hz (approx. 0.2 Hz increments) | |
| Storage | Internal Memory | approx. 550 KB |
| External Drives | USB flash drive | |
| Connectivity | DC IN | 16 V |
| Headphones | Stereo mini jack (×2) | |
| MIDI | - | |
| AUX IN | Stereo mini jack | |
| USB TO DEVICE | Yes | |
| USB TO HOST | Yes | |
| AC Adaptor | PA-300C (or an equivalent recommended by Yamaha) | |
| Power Consumption | 11 W (When using PA-300C AC adaptor) | |
| Auto Power Off | Yes | |
| Included Accessories | AC adaptor*, power cord*, headphones, headphone hanger, attachment screws for headphone hanger, Owner’s Manual *May not be included depending on your area. Check with your Yamaha dealer. | |
| Separately Sold Accessories | USB wireless LAN adaptor (UD-WL01), wireless MIDI adaptor (UD-BT01) *May not be available depending on your area. | |

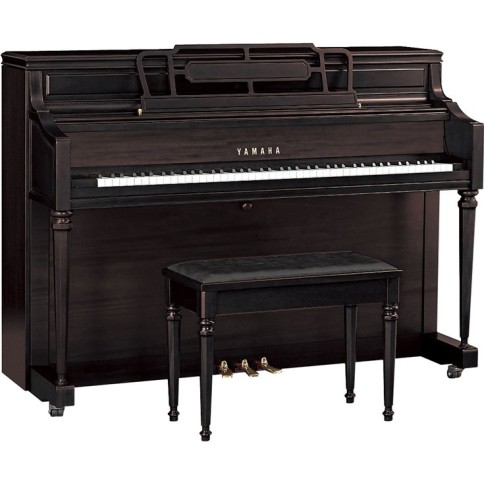

110cm Natural Finish Series Satin Black Walnut
| M2 | ||
|---|---|---|
| Cabinet | Color | Satin Mahogany / Satin Dark Walnut / Satin Black Walnut *Availability of other finishes depends on model and is subject to regional variation. Please consult your Yamaha dealer for further information. |
| Dimensions | Width | 150cm(59") |
| Height | 110cm(43 1/4") | |
| Depth | 59cm(23 1/4") | |
| Weight | Weight | 206kg(454lbs) |
| Keyboard | Number of Keys | 88 |
| Caster | Type | Double casters |
| Key Cover | Soft-Close Fallboard | Yes |
| M2 | ||
|---|---|---|
| Cabinet | Color | Satin Mahogany / Satin Dark Walnut / Satin Black Walnut *Availability of other finishes depends on model and is subject to regional variation. Please consult your Yamaha dealer for further information. |
| Dimensions | Width | 150cm(59") |
| Height | 110cm(43 1/4") | |
| Depth | 59cm(23 1/4") | |
| Weight | Weight | 206kg(454lbs) |
| Keyboard | Number of Keys | 88 |
| Caster | Type | Double casters |
| Key Cover | Soft-Close Fallboard | Yes |
118cm Furniture Style with Elegant Leg Curves Design with Bench / Satin Mahogany
| M3 | ||
|---|---|---|
| Cabinet | Color | Satin Mahogany / Satin Dark Walnut / Satin Black Walnut *Availability of other finishes depends on model and is subject to regional variation. Please consult your Yamaha dealer for further information. |
| Dimensions | Width | 156cm(61 1/2") |
| Height | 118cm(46 1/2") | |
| Depth | 64cm(25 1/4") | |
| Weight | Weight | 235kg(518lbs) |
| Keyboard | Number of Keys | 88 |
| Caster | Type | Double casters |
| Key Cover | Soft-Close Fallboard | Yes |

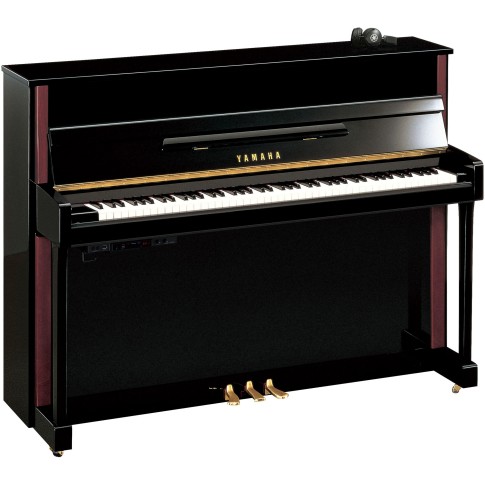

This is an SG2 type type Silent piano™ featuring a CFIIIS sound source.
| JX113T SC2 | ||
|---|---|---|
| Dimensions | Width | 150 cm (59") |
| Height | 113 cm (44 1/2") | |
| Depth | 54 cm (21 1/4") | |
| Weight | Weight | 220 kg (495 lb) |
| Keyboard | Key Surfaces - White | Acrylic resin |
| Key Surfaces - Black | Phenolic resin | |
| Hammer | Type | JU/JX Series Special |
| Pedal | Type | Damper/Silencing pedal/Soft |
| Caster | Type | Single caster |
| Lid | Prop Safety Stop | - |
| Key Cover | Lid/Fallboard Locks | - |
| Soft-Close Fallboard | - | |
| Key Sensors | Non-contact continuous detection optical sensor | |
| Damper Pedal | Continuous detection sensor | |
| Sostenuto Pedal | - | |
| Soft/Shift Pedal | On/Off detection sensor | |
| Mechanism | Hammer shank stopper operated by center pedal | |
| Action | - | |
| Tone Generation | Piano Sound | Yamaha CFX, Bösendorfer Imperial |
| Binaural Sampling | Yes (CFX Grand Voice only) | |
| VRM | Yes | |
| Key-off Samples | Yes | |
| Smooth Release | Yes | |
| Polyphony (max.) | 256 | |
| Preset | Number of Voices | 10 |
| Types | Reverb | Yes |
| Brilliance | Yes | |
| Stereophonic Optimizer | Yes (Piano Voices other than CFX Grand) | |
| Preset | Number of Preset Songs | 10 Voice Demo Songs, 50 Classics |
| Recording | Number of Songs | 1 |
| Data Capacity | approx. 550 KB | |
| Format | Playback | SMF (Format 0, Format 1) |
| Recording | SMF (Format 0) | |
| Recording Time (max.) | 80 minutes/Song | |
| Format | Playback | WAV (44.1 kHz, 16 bit, stereo) |
| Recording | WAV (44.1 kHz, 16 bit, stereo) | |
| Overall Controls | Metronome | Yes |
| Tempo Range | 5 – 500 | |
| Transpose | -6 – 0 – +6 | |
| Tuning | 414.8 – 440.0 – 466.8 Hz (approx. 0.2 Hz increments) | |
| Storage | Internal Memory | approx. 550 KB |
| External Drives | USB flash drive | |
| Connectivity | DC IN | 16 V |
| Headphones | Stereo mini jack (×2) | |
| MIDI | - | |
| AUX IN | Stereo mini jack | |
| USB TO DEVICE | Yes | |
| USB TO HOST | Yes | |
| AC Adaptor | PA-300C (or an equivalent recommended by Yamaha) | |
| Power Consumption | 11 W (When using PA-300C AC adaptor) | |
| Auto Power Off | Yes | |
| Included Accessories | AC adaptor*, power cord*, headphones, headphone hanger, attachment screws for headphone hanger, Owner’s Manual *May not be included depending on your area. Check with your Yamaha dealer. | |
| Separately Sold Accessories | USB wireless LAN adaptor (UD-WL01), wireless MIDI adaptor (UD-BT01) *May not be available depending on your area. | |
This 121 cm model was designed based on the highly acclaimed U series uprights, and augments the excellent tonal characteristics of that series with exterior refinements (including a well-polished finish) that help maintain the beauty of the instrument ov
| U1J | ||
|---|---|---|
| Cabinet | Color | Polished Ebony *Availability of other finishes depends on model and is subject to regional variation. Please consult your Yamaha dealer for further information. |
| Finish | Polished | |
| Dimensions | Width | 152cm(60") |
| Height | 121cm(47 3/4") | |
| Depth | 62cm(24 1/2") | |
| Weight | Weight | 246kg(542Ibs) |
| Keyboard | Number of Keys | 88 |
| Key Surfaces - White | Acrylic Resin | |
| Key Surfaces - Black | Phenolic Resin | |
| Pedal | Type | Damper,Muffler,Soft |
| Key Cover | Soft-Close Fallboard | Yes |
121cm Silent Piano, 256-note polyphony, 10 voices incl. Yamaha CFX and Boesendorfer Imperial piano voices, VRM, Polished Ebony, with Bench
| U1J SC2 | ||
|---|---|---|
| Dimensions | Width | 152 cm (60") |
| Height | 121 cm (47 3/4") | |
| Depth | 62 cm (24 1/2") | |
| Weight | Weight | 250 kg (561 lb) |
| Keyboard | Key Surfaces - White | Acrylic resin |
| Key Surfaces - Black | Phenolic resin | |
| Hammer | Type | U1J Special |
| Pedal | Type | Damper/Silencing pedal/Soft |
| Caster | Type | Double Caster |
| Lid | Prop Safety Stop | - |
| Key Cover | Lid/Fallboard Locks | - |
| Soft-Close Fallboard | Yes | |
| Key Sensors | Non-contact continuous detection optical sensor | |
| Damper Pedal | Continuous detection sensor | |
| Sostenuto Pedal | - | |
| Soft/Shift Pedal | On/Off detection sensor | |
| Mechanism | Hammer shank stopper operated by center pedal | |
| Action | - | |
| Tone Generation | Piano Sound | Yamaha CFX, Bösendorfer Imperial |
| Binaural Sampling | Yes (CFX Grand Voice only) | |
| VRM | Yes | |
| Key-off Samples | Yes | |
| Smooth Release | Yes | |
| Polyphony (max.) | 256 | |
| Preset | Number of Voices | 10 |
| Types | Reverb | Yes |
| Brilliance | Yes | |
| Stereophonic Optimizer | Yes (Piano Voices other than CFX Grand) | |
| Preset | Number of Preset Songs | 10 Voice Demo Songs, 50 Classics |
| Recording | Number of Songs | 1 |
| Data Capacity | approx. 550 KB | |
| Format | Playback | SMF (Format 0, Format 1) |
| Recording | SMF (Format 0) | |
| Recording Time (max.) | 80 minutes/Song | |
| Format | Playback | WAV (44.1 kHz, 16 bit, stereo) |
| Recording | WAV (44.1 kHz, 16 bit, stereo) | |
| Overall Controls | Metronome | Yes |
| Tempo Range | 5 – 500 | |
| Transpose | -6 – 0 – +6 | |
| Tuning | 414.8 – 440.0 – 466.8 Hz (approx. 0.2 Hz increments) | |
| Storage | Internal Memory | approx. 550 KB |
| External Drives | USB flash drive | |
| Connectivity | DC IN | 16 V |
| Headphones | Stereo mini jack (×2) | |
| MIDI | - | |
| AUX IN | Stereo mini jack | |
| USB TO DEVICE | Yes | |
| USB TO HOST | Yes | |
| AC Adaptor | PA-300C (or an equivalent recommended by Yamaha) | |
| Power Consumption | 11 W (When using PA-300C AC adaptor) | |
| Auto Power Off | Yes | |
| Included Accessories | AC adaptor*, power cord*, headphones, headphone hanger, attachment screws for headphone hanger, Owner’s Manual *May not be included depending on your area. Check with your Yamaha dealer. | |
| Separately Sold Accessories | USB wireless LAN adaptor (UD-WL01), wireless MIDI adaptor (UD-BT01) *May not be available depending on your area. | |
The tallest an most distinguished model of the U series at 131 cm in height, providing even greater expressiveness and playability.
| U3 | ||
|---|---|---|
| Cabinet | Color | Polished Ebony *Availability of other finishes depends on model and is subject to regional variation. Please consult your Yamaha dealer for further information. |
| Finish | Polished | |
| Dimensions | Width | 153cm(60 1/4") |
| Height | 131cm(51 1/2") | |
| Depth | 65cm(25 1/2") | |
| Weight | Weight | 246kg(542Ibs) |
| Keyboard | Number of Keys | 88 |
| Key Surfaces - White | Acrylic Resin | |
| Key Surfaces - Black | Phenolic Resin | |
| Pedal | Type | Damper,Muffler,Soft |
| Key Cover | Soft-Close Fallboard | Yes |
Built with unwavering commitment to the best sound, yet in a compact, 121 cm height cabinet.
| YUS1 | ||
|---|---|---|
| Cabinet | Color | Polished Ebony *Availability of other finishes depends on model and is subject to regional variation. Please consult your Yamaha dealer for further information. |
| Finish | Polished | |
| Dimensions | Width | 152cm(59 3/4") |
| Height | 121cm(47 3/4") | |
| Depth | 62cm(24 1/2") | |
| Weight | Weight | 229kg(504lbs) |
| Keyboard | Number of Keys | 88 |
| Pedal | Type | Soft,Muffler, Damper |
| Caster | Type | Double casters |
131cm Traditional Cabinet with Bench Polished Ebony
| YUS3 | ||
|---|---|---|
| Cabinet | Color | Polished Ebony *Availability of other finishes depends on model and is subject to regional variation. Please consult your Yamaha dealer for further information. |
| Finish | Polished | |
| Dimensions | Width | 152cm(59 3/4") |
| Height | 131cm(51 1/2") | |
| Depth | 65cm(25 1/2") | |
| Weight | Weight | 247kg(545lbs) |
| Keyboard | Number of Keys | 88 |
| Pedal | Type | Soft,Muffler,Damper |
| Caster | Type | Double casters |
