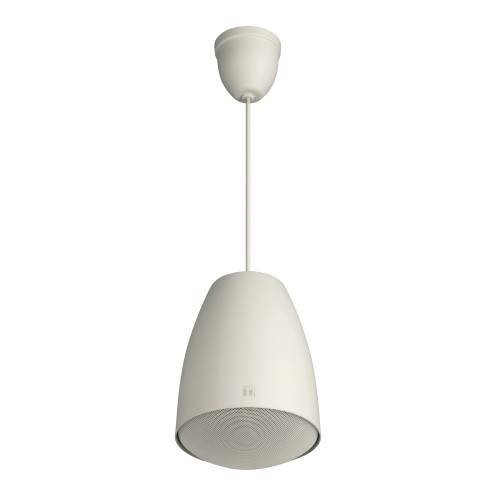

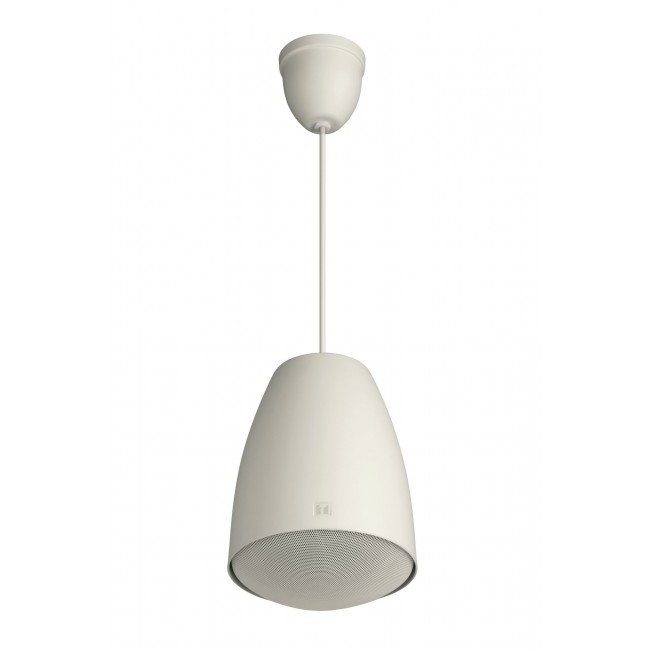

The PE-304 is a pendant speaker designed for ceiling suspension installations. Considered in architectural design, it can blend in with lighting equipment. A directly-attached 5 m (16.4 ft) cable allows the speaker to be suspended from the high ceiling. The PE-304 is driven on both high-impedance (100 V and 70 V) and low-impedance (8 Ohm) lines. The input power (impedance) can be easily changed at the upper side of the speaker. The speaker is easy to repaint so as to meet a wide range of design needs.
- Ideally suited for BGM and announcements
- Stylish and outstanding design inspired by the finest lighting fixtures
- Excellent sound quality
- Sturdy cable extendable up to 5 meters
- Paintable
- Input impedance easily changeable
- Bass-reflex type
| PE-304 | |
|---|---|
| Frequency response |
70 Hz - 20 kHz |
| Connection |
Push-in connector (bridging terminal - 2 branch type) |
| Sensitivity (1 W, 1 m) |
91 dB (500 Hz – 5 kHz, pink noise) |
| Speaker component |
12 cm cone-type + balanced-dome tweeter |
| Rated input (High Impedance) |
30 W |
| Tappings |
100 V line: 330 Ω (30 W), 500 Ω (20 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W) 70 V line: 170 Ω (30 W), 250 Ω (20 W), 330 Ω (15 W), 500 Ω (10 W), 1 kΩ (5 W) Low impedance: 8 Ω |
| Finish |
HIPS resin, off-white (RAL 9010 or equivalent) |
| Dimensions |
186 x 251 mm (Ø x H) |
| Weight |
2.1 kg |
| Accessory (included) |
GRIPPLE® No. 1 x 1, GRIPPLE® No. 2 x 1, Release key (for GRIPPLE®) x 1, Safety wire (ø 1.5 mm (ø 0.06”) x 1, Hanging wire (ø 2 mm (ø 0.08 ”) x 1, Speaker Cable (4-core FPL listed cable 4.6 m (15.09ft) x 1 |
| Rated impedance |
