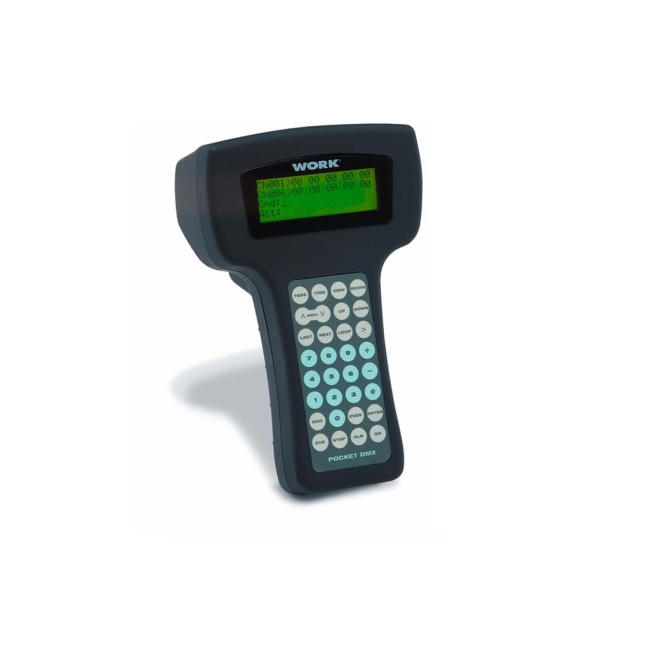

Pocket DMX is a useful tool for lighting installers, as it allows the easy and fast installation of 512 output channel applications. In only three steps, it is possible to give the value "136" to channels 1 to 100. This action can be saved as a scene (up to 120) and sent in simple or continuous mode. This is particularly useful to check the state of all the spots and moving heads on stage.
Sequencer of DMX commands.
Moulded in high resistance ABS plastic.
Backlight LCD display, 4x20 characters.
DMX commands with 512 output channels.
Memory: up to 120 scenes.
Scene execution in simple/continuous modes.
512 individual DMX channels.
Connectors: DMX XLR3 and XLR5.
Power supply: DC 9 V, 500 mA (rechargeable battery included).
Dimensions: 160 x 200 x 55 mm.
Weight: 1.2 kg
|Connections||DMX In: 1 x XLR3/5 DMX Out: 1 x XLR 3/5|
|Power supply||DC 9 V, 500 mA (batería recargable incorporada)|
|Dimensions||209 x 136 x 63 mm|
